Musikschrank MM3 Ch= RC61; Braun; Frankfurt (ID = 2066009) Radio
Braun; Frankfurt: Musikschrank MM3 Ch= RC61 [Radio] ID = 2066009 900x675
Select picture or schematic to display from thumbnails on the right and click for download.
For model Musikschrank MM3 Ch= RC61, Braun; Frankfurt

Country:  Germany
Manufacturer / Brand:  Braun; Frankfurt
Year: 1956–1958 Category: Broadcast Receiver - or past WW2 Tuner

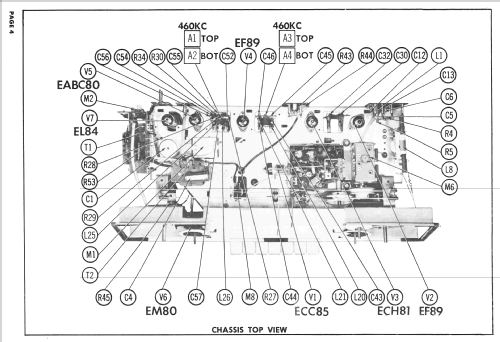

Valves / Tubes 7: ECC85 ECH81 EF89 EF89 EM80 EABC80 EL84
Main principle Superheterodyne (common); ZF/IF 460/10700 kHz
Tuned circuits 6 AM circuit(s)     12 FM circuit(s)
Wave bands Broadcast, Long Wave, Short Wave plus FM or UHF.
Details Changer (Record changer)
Power type and voltage Alternating Current supply (AC) / 110; 125; 150; 220; 240 Volt
Loudspeaker 4 Loudspeakers
Power out 6 W (unknown quality)
from Radiomuseum.org Model: Musikschrank MM3 Ch= RC61 - Braun; Frankfurt

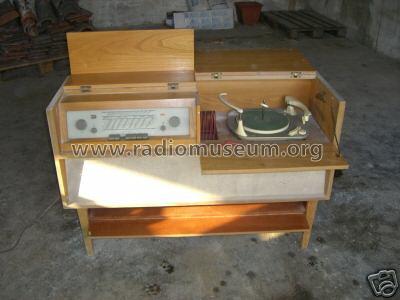

Material Wooden case
Shape Console with any shape - in general
Dimensions (WHD) 1120 x 750 x 380 mm / 44.1 x 29.5 x 15 inch
Notes

Braun model MM3 is an AC operated FM-AM-SW receiver.Phono-Chassis = Telefunken TW560.

Price in first year of sale 740.00 DM
Source of data HdB d.Rdf-& Ferns-GrH 1956/57 / Radiokatalog Band 1, Ernst Erb
Mentioned in HdB d.Rdf-& Ferns-GrH 1957/58

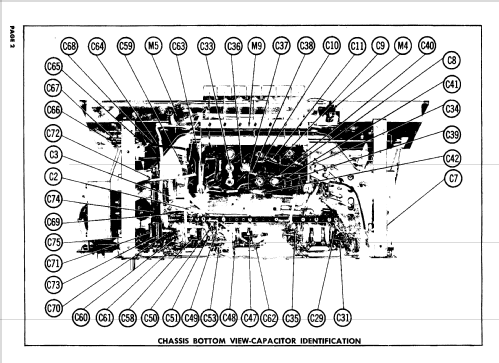

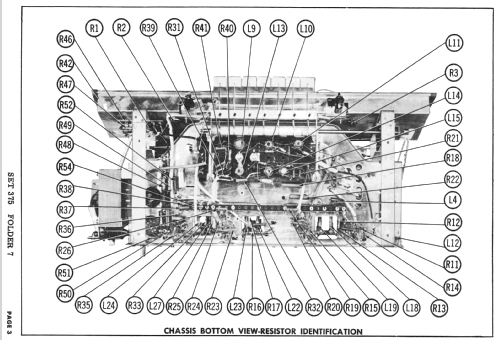

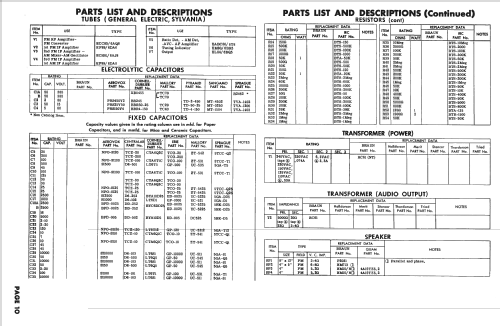

Literature/Schematics (1) Photofact Folder, Howard W. SAMS (Set 375 Folder 7 Dated 10-57)
