UKW Pendlaudion PA60(W)

UKW Pendlaudion PA60; Braun; Frankfurt (ID = 11601) Converter
UKW Pendlaudion PA60; Braun; Frankfurt (ID = 1020297) Converter UKW Pendlaudion PA60; Braun; Frankfurt (ID = 1020294) Converter

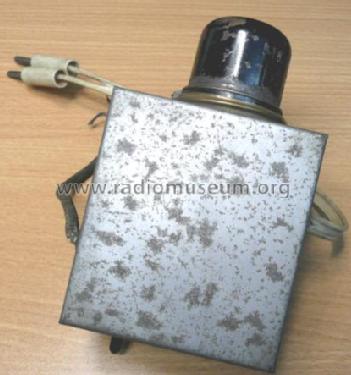

UKW Pendlaudion PA60; Braun; Frankfurt (ID = 1020295) Converter UKW Pendlaudion PA60; Braun; Frankfurt (ID = 1020296) Converter
UKW Pendlaudion PA60; Braun; Frankfurt (ID = 1020298) Converter UKW Pendlaudion PA60; Braun; Frankfurt (ID = 1020299) Converter
UKW Pendlaudion PA60; Braun; Frankfurt (ID = 1598345) Converter UKW Pendlaudion PA60; Braun; Frankfurt (ID = 1598346) Converter
UKW Pendlaudion PA60; Braun; Frankfurt (ID = 1598347) Converter UKW Pendlaudion PA60; Braun; Frankfurt (ID = 1598348) Converter
Use red slider bar for more.

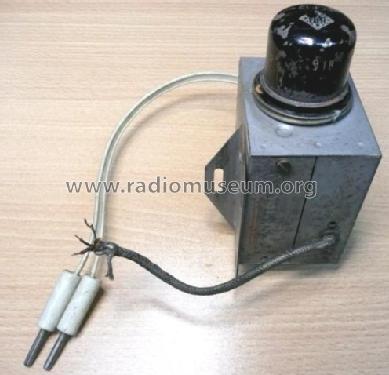

UKW Pendlaudion PA60; Braun; Frankfurt (ID = 1020297) Converter
Braun; Frankfurt: UKW Pendlaudion PA60 [Converter] ID = 1020297 496x478
Select picture or schematic to display from thumbnails on the right and click for download.
For model UKW Pendlaudion PA60(W), Braun; Frankfurt

Country:  Germany
Manufacturer / Brand:  Braun; Frankfurt
Year: 1950/1951 Category: Pre-stage (adaptor for SW/FM/VHF/UHF incl. built-in), Frequency converter
Valves / Tubes 1: ECF12
Main principle RF Converter/Adapter (not voltage converter)
Wave bands FM Broadcast Band Only
Details
Power type and voltage Powered by external power supply or a main unit.
Loudspeaker - For headphones or amp.
Power out
from Radiomuseum.org Model: UKW Pendlaudion PA60 - Braun; Frankfurt
Material Metal case
Notes UKW-Einbausatz
Price in first year of sale 35.00 DM
Source of data Radiokatalog Band 1, Ernst Erb
Circuit diagram reference Lange Schaltungen der Funkindustrie, Buch 2
Mentioned in Funkschau (5022)
