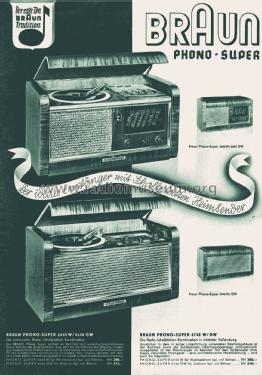

Phono 5640W

Phono 5640W; Braun; Frankfurt (ID = 893144) Radio

Phono 5640W; Braun; Frankfurt (ID = 6168) Radio

Phono 5640W; Braun; Frankfurt (ID = 8144) Radio
Phono 5640W; Braun; Frankfurt (ID = 811568) Radio Phono 5640W; Braun; Frankfurt (ID = 165) Radio
Phono 5640W; Braun; Frankfurt (ID = 28870) Radio Phono 5640W; Braun; Frankfurt (ID = 811569) Radio

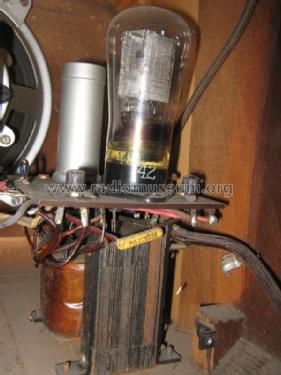

Phono 5640W; Braun; Frankfurt (ID = 811573) Radio Phono 5640W; Braun; Frankfurt (ID = 811574) Radio
Phono 5640W; Braun; Frankfurt (ID = 811576) Radio Phono 5640W; Braun; Frankfurt (ID = 811578) Radio
Phono 5640W; Braun; Frankfurt (ID = 899246) Radio Phono 5640W; Braun; Frankfurt (ID = 899878) Radio
Use red slider bar for more.
Phono 5640W; Braun; Frankfurt (ID = 811568) Radio
Braun; Frankfurt: Phono 5640W [Radio] ID = 811568 800x600
Select picture or schematic to display from thumbnails on the right and click for download.
For model Phono 5640W, Braun; Frankfurt

Country:  Germany
Manufacturer / Brand:  Braun; Frankfurt
Year: 1939/1940 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 5: ECH11 EBF11 EL11 AZ11 EFM11
Main principle Superheterodyne (common); ZF/IF 488 kHz
Tuned circuits 6 AM circuit(s)
Wave bands Broadcast, Long Wave and Short Wave.
Details Record Player (perh.Changer)
Power type and voltage Alternating Current supply (AC) / 110-240 Volt
Loudspeaker Electro Magnetic Dynamic LS (moving-coil with field excitation coil)
Power out
from Radiomuseum.org Model: Phono 5640W - Braun; Frankfurt
Material Wooden case
Dimensions (WHD) 660 x 375 x 340 mm / 26 x 14.8 x 13.4 inch
Notes variable Bandbreite
Net weight (2.2 lb = 1 kg) 20 kg / 44 lb 0.8 oz (44.053 lb)
Price in first year of sale 298.00 RM
Source of data Handbuch WDRG 1939 / Radiokatalog Band 1, Ernst Erb
Circuit diagram reference Lange+Schenk+FS-Röhrenbestückung
Picture reference Das Modell ist im «Radiokatalog» (Erb) abgebildet.
