• Year
  • 1957 ?
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 300707

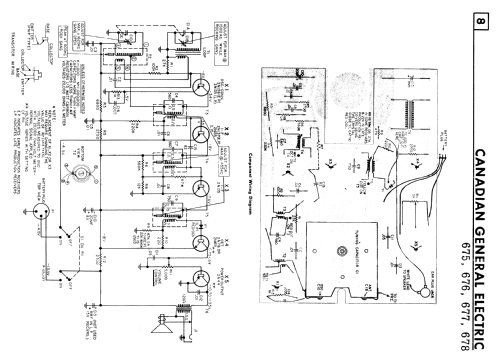

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Tubes
  • 0
  • Valves / Tubes
  • or
  • Number of Transistors
  • 5
  • Main principle
  • Superheterodyne (common); ZF/IF 455 kHz; 2 AF stage(s)
  • Tuned circuits
  • 5 AM circuit(s)
  • Wave bands
  • Broadcast only (MW).
  • Power type and voltage
  • Dry Batteries
  • Loudspeaker
  • Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 2.75 inch = 7 cm
  • Power out
  • 0.04 W (0.06 W max.)
  • Material
  • Plastics (no bakelite or catalin)
  • from Radiomuseum.org
  • Model: 676 [Late] - Canadian General Electric
  • Shape
  • Very small Portable or Pocket-Set (Handheld) < 8 inch.
  • Dimensions (WHD)
  • 5.7 x 3.2 x 1.5 inch / 145 x 81 x 38 mm
  • Notes
  • The Canadian General Electric model 676 is a pocket transistor radio. Uses one Eveready 239 or Burgess XX9 battery. This is a 13.5 volt battery with a tap at 9 volts.
    Models in early production runs used different transistor types.

    Model Colour
    675 Ebony
    676 Ivory
    677 Red
    678 Aqua

    See similar USA models.

  • Author
  • Model page created by Tom Seeger. See "Data change" for further contributors.
