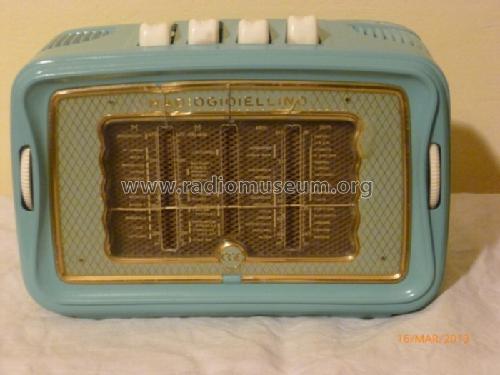

Radiogioiellino 1565

• Country
• Italy

• Manufacturer / Brand
• CGE, Compagnia Generale di Elettricità; Milano

• Year
• 1954–1956

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 72999

• Picture
• Schematics

Previous Next

Previous Next

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 5

• Valves / Tubes
• 12AJ8 or 12TE9 12BA6 12AT6 50B5 35W4

• Main principle
• Superheterodyne (common); ZF/IF 468 kHz

• Tuned circuits
• 9 AM circuit(s)

• Wave bands
• Broadcast plus 2 Short Wave bands.

• Power type and voltage
• Alternating Current supply (AC) / 120-220 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 7.5 cm = 3 inch

• Power out
• 1.5 W (unknown quality)

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org
• Model: Radiogioiellino 1565 - CGE, Compagnia Generale di

• Shape
• Tablemodel without push buttons, Mantel/Midget/Compact up to 14

• Dimensions (WHD)
• 230 x 150 x 110 mm / 9.1 x 5.9 x 4.3 inch

• Notes
• Serie Anie MA. Gamme onde medie con sintonia a permeabilità variabile e due gamme onde corte a 50 e 25 metri. Tre varianti di colore: pergamena, celeste, verde. Catalogo ANIE 1956-57 indica 11 cm come diametro dell'altoparlante.

• Net weight (2.2 lb = 1 kg)
• 2.1 kg / 4 lb 10 oz (4.626 lb)

• Price in first year of sale
• 23,900.00 ITL

• External source of data
• Alessandro De Poi - http://www.depoi.net

• Source of data
• Guida Pratica Antique Radio (1) 1999

• Mentioned in
• Catalogo ANIE (1956-57)

• Literature/Schematics (1)
• -- Schematic (D.E. Ravalico, Il Radiolibro, 16° edizione, 1957, Hoepli)

• Author
• Model page created by Ernst Erb. See "Data change" for further contributors.
