- Country
- United States of America (USA)
- Manufacturer / Brand
- Clark Radio Equipment Co.; Chicago
- Year
- 1946/1947
- Category
- Audio Amplifier or -mixer
- Radiomuseum.org ID
- 151868

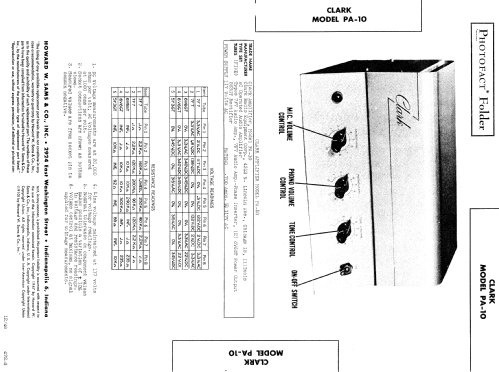

SAMS Photofact
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 5
- Main principle
- Audio-Amplification; 3 AF stage(s)
- Wave bands
- - without
- Power type and voltage
- Alternating Current supply (AC) / 117 Volt
- Loudspeaker
- - This model requires external speaker(s).
- Material
- Metal case
- from Radiomuseum.org
- Model: PA-10 - Clark Radio Equipment Co.;
- Shape
- Tablemodel, with any shape - general.
- Notes
- The Clarc model PA-10 is an AC Operated Audio Amplifier. You will notice on the SAMS Photofacts the date 12/46 but the folders before and after show 1/47. We believe that would have been the right date and we changed it here. The Push-Pull output (twice 6V6) has a transformer for 500, 16, 8 and 4 ohms. There is a high impedance entry with 3 stages and one of 500 K with two stages. The second 7F7 is the phase inverter. See also the PA-10A with six tubes but same case.
- Literature/Schematics (1)
- Photofact Folder, Howard W. SAMS (Date: Jan 1947, Set 12, Folder 472-6)
- Author
- Model page created by Ernst Erb. See "Data change" for further contributors.
