• Country
• Germany

• Manufacturer / Brand
• Elektroakustik Hartmannsdorf, EAH, VEB(K), (Ostd.)

• Year
• 1968 ?

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 120159

• Number of Tubes
• 14

• Valves / Tubes
• ECC85 EF89 ECH81 EBF89 EBF89 ECC83 ECC83 ECC83 EL95 EL95 EL95 EL95 EM84 EM84

• Number of Transistors
• 2

• Semiconductors

• Main principle
• Superheterodyne (common)

• Tuned circuits
• 9 AM circuit(s)     14 FM circuit(s)

• Wave bands
• Broadcast, Long Wave, Short Wave plus FM or UHF.

• Power type and voltage
• Alternating Current supply (AC) / 110; 127; 150; 180; 200; 220 Volt

• Loudspeaker
• 4 Loudspeakers

• Material
• Wooden case

• from Radiomuseum.org

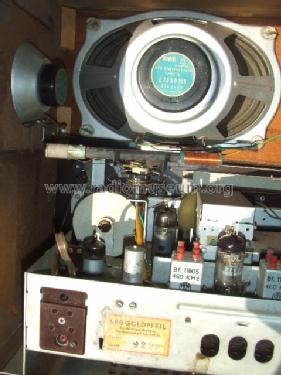

• Model: Capriola G6013/2 - Elektroakustik Hartmannsdorf,

• Shape
• Tablemodel, low profile (big size).

• Dimensions (WHD)
• 690 x 395 x 260 mm / 27.2 x 15.6 x 10.2 inch

• Notes
• Stereo-Gerät mit Balance-Regler. Drehbare Ferritantenne. Exportvariante des Rossini G6010 nach OIRT-Norm für die damalige CSSR. Mit Stereodekoder (ohne = Capriola G6013). - Skala und Beschriftung der Rückwand in tschechischer Sprache.

• Net weight (2.2 lb = 1 kg)
• 20.1 kg / 44 lb 4.4 oz (44.273 lb)

• Source of data
• - - Data from my own collection

• Mentioned in
• Funkverlag Hein, Service-DVD

• Author
• Model page created by Reinhard Hanschke. See "Data change" for further contributors.
