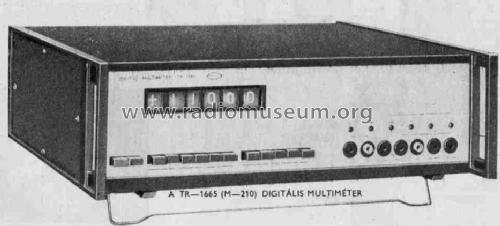

Multimeter M 210/ TR-1665

• Country
• Hungary

• Manufacturer / Brand
• Hiradástechnikai Ipari Kutató Intézet (HIKI); Bp.

• Year
• 1976–1978

• Category
• Service- or Lab Equipment

• Radiomuseum.org ID
• 150740

• Picture
• Schematics

Previous Next

Previous Next

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 6

• Valves / Tubes

• Number of Transistors
• Semiconductors present.

• Semiconductors

• Wave bands
• - without

• Power type and voltage
• Alternating Current supply (AC) / 220 Volt

• Loudspeaker
• - - No sound reproduction output.

• Material
• Metal case

• from Radiomuseum.org
• Model: Multimeter M 210/ TR-1665 - Hiradástechnikai Ipari Kutató

• Shape
• Tablemodel, with any shape - general.

• Dimensions (WHD)
• 440 x 135 x 420 mm / 17.3 x 5.3 x 16.5 inch

• Net weight (2.2 lb = 1 kg)
• 10 kg / 22 lb 0.4 oz (22.026 lb)

• Source of data
• -- Original-techn. papers.

• Literature/Schematics (1)
• Rádiótechnika 1976/2.

• Author
• Model page created by Sándor Selyem-Tóth. See "Data change" for further contributors.
