Izabella MOT664

Izabella MOT664; Unitra ELTRA; (ID = 940259) Radio
Izabella MOT664; Unitra ELTRA; (ID = 300566) Radio Izabella MOT664; Unitra ELTRA; (ID = 300567) Radio
Use red slider bar for more.

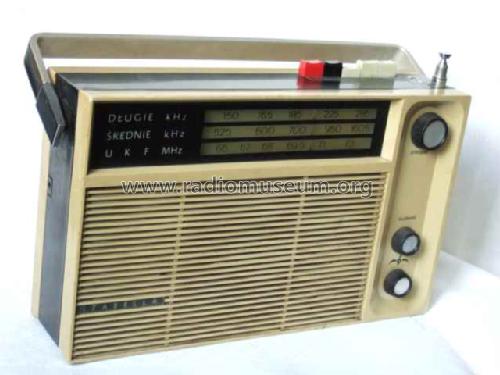

Izabella MOT664; Unitra ELTRA; (ID = 300566) Radio
Unitra ELTRA;: Izabella MOT664 [Radio] ID = 300566 640x480
Select picture or schematic to display from thumbnails on the right and click for download.
For model Izabella MOT664, Unitra ELTRA; Zaklady Radiowe; Bydgoszcz

Country:  Poland
Manufacturer / Brand:  Unitra ELTRA; Zaklady Radiowe; Bydgoszcz
Year: 1969 Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) 9: AF106 SFT351 SFT318 SFT318 SFT318 TG-5 TG-5 TG50 TG50 DOG53 DOG53
Main principle Super-Heterodyne (Super in general)
Tuned circuits 6 AM circuit(s)     10 FM circuit(s)
Wave bands Broadcast, Long Wave and FM or UHF.
Details
Power type and voltage Dry Batteries / 9 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
Power out
from Radiomuseum.org Model: Izabella MOT664 - Unitra ELTRA; Zaklady Radiowe;
Material Modern plastics (no Bakelite or Catalin)
Shape Portable set > 8 inch (also usable without mains)
Dimensions (WHD) 285 x 175 x 75 mm / 11.2 x 6.9 x 3 inch
Net weight (2.2 lb = 1 kg) 1.5 kg / 3 lb 4.9 oz (3.304 lb)
Collectors' prices
Source of data -- Schematic

Model page created by Franz Scharner. See "Data change" for further contributors.
