Amplificatore G1/2030

Amplificatore G1/2030; Geloso SA; Milano (ID = 407473) Ampl/Mixer

Amplificatore G1/2030; Geloso SA; Milano (ID = 407474) Ampl/Mixer
Amplificatore G1/2030; Geloso SA; Milano (ID = 1653611) Ampl/Mixer Amplificatore G1/2030; Geloso SA; Milano (ID = 407476) Ampl/Mixer
Amplificatore G1/2030; Geloso SA; Milano (ID = 1653610) Ampl/Mixer Amplificatore G1/2030; Geloso SA; Milano (ID = 1653612) Ampl/Mixer
Amplificatore G1/2030; Geloso SA; Milano (ID = 1653613) Ampl/Mixer Amplificatore G1/2030; Geloso SA; Milano (ID = 1653614) Ampl/Mixer
Amplificatore G1/2030; Geloso SA; Milano (ID = 1653615) Ampl/Mixer Amplificatore G1/2030; Geloso SA; Milano (ID = 1653616) Ampl/Mixer
Amplificatore G1/2030; Geloso SA; Milano (ID = 1653617) Ampl/Mixer
Use red slider bar for more.

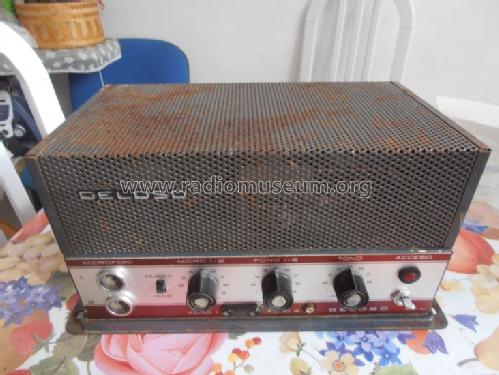

Amplificatore G1/2030; Geloso SA; Milano (ID = 1653611) Ampl/Mixer
Geloso SA; Milano: Amplificatore G1/2030 [Ampl/Mixer] ID = 1653611 733x550
Select picture or schematic to display from thumbnails on the right and click for download.
For model Amplificatore G1/2030, Geloso SA; Milano

Country:  Italy
Manufacturer / Brand:  Geloso SA; Milano
Year: 1970 Category: Audio Amplifier or -mixer
Semiconductors (the count is only for transistors) 8:
Main principle Audio-Amplification
Wave bands - without
Details
Power type and voltage Alternating Current supply (AC) / 110-240 Volt
Loudspeaker - This model requires external speaker(s).
Power out 30 W (unknown quality)
from Radiomuseum.org Model: Amplificatore G1/2030 - Geloso SA; Milano
Material Metal case
Shape Tablemodel, low profile (big size).
Dimensions (WHD) 330 x 160 x 180 mm / 13 x 6.3 x 7.1 inch
Notes Ampificatore a transistor con 2 entrate micro in parallelo e due entrate fono in parallelo.Possibilità di miscelazione. Impedenze di uscita 4-8-16-125-500 ohm - 70 volt cost.
Transistor: BF244B, 2x BC149 o 2x BC109, BC148, BFY51, TIP24, 2x ASZ16.
Net weight (2.2 lb = 1 kg) 6 kg / 13 lb 3.5 oz (13.216 lb)
Literature/Schematics (1) Bollettino Tecnico Geloso (n. 112-113 inverno primavera 1970)

Model page created by Giuseppe Antonio Tusini. See "Data change" for further contributors.
