G1/188-TS

G1/188-TS; Geloso SA; Milano (ID = 492925) Ampl/Mixer
G1/188-TS; Geloso SA; Milano (ID = 492926) Ampl/Mixer
Use red slider bar for more.
G1/188-TS; Geloso SA; Milano (ID = 492926) Ampl/Mixer

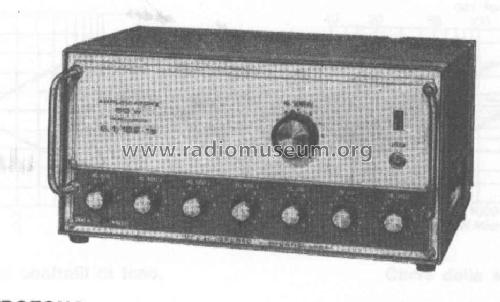

Geloso SA; Milano: G1/188-TS [Ampl/Mixer] ID = 492926 933x564
Select picture or schematic to display from thumbnails on the right and click for download.
For model G1/188-TS, Geloso SA; Milano:
Bollettino Tecnico Geloso n. 112-113, anno 1970

Country:  Italy
Manufacturer / Brand:  Geloso SA; Milano
Year: 1970 ? Category: Audio Amplifier or -mixer
Semiconductors (the count is only for transistors) 13: BC109 BC109 BC109 BC109 BC109 BC109 BC109 BC107 AC128 AC128 AD149 2N3055 2N3055
Main principle Audio-Amplification
Wave bands - without
Details
Power type and voltage Alternating Current supply (AC) / 110-240 Volt
Loudspeaker - This model requires external speaker(s).
Power out 60 W (unknown quality)
from Radiomuseum.org Model: G1/188-TS - Geloso SA; Milano
Material Metal case
Shape Tablemodel, with any shape - general.
Dimensions (WHD) 390 x 190 x 270 mm / 15.4 x 7.5 x 10.6 inch
Notes Amplificatore dotato di quattro ingressi per micro a media impedenza e due ingressi fono inseribili in alternativa. Diodi 10, BY126.
Net weight (2.2 lb = 1 kg) 13 kg / 28 lb 10.1 oz (28.634 lb)
Literature/Schematics (1) Bollettino Tecnico Geloso (n. 112-113, 1970)

Model page created by Giuseppe Antonio Tusini. See "Data change" for further contributors.
