Ultra-Stereo 61W

Ultra-Stereo 61W; Gerufon-Radio Walter (ID = 104465) Radio
Ultra-Stereo 61W; Gerufon-Radio Walter (ID = 2130702) Radio Ultra-Stereo 61W; Gerufon-Radio Walter (ID = 131489) Radio
Ultra-Stereo 61W; Gerufon-Radio Walter (ID = 131490) Radio Ultra-Stereo 61W; Gerufon-Radio Walter (ID = 131491) Radio
Ultra-Stereo 61W; Gerufon-Radio Walter (ID = 104476) Radio Ultra-Stereo 61W; Gerufon-Radio Walter (ID = 131493) Radio
Ultra-Stereo 61W; Gerufon-Radio Walter (ID = 131494) Radio Ultra-Stereo 61W; Gerufon-Radio Walter (ID = 256817) Radio
Ultra-Stereo 61W; Gerufon-Radio Walter (ID = 256818) Radio Ultra-Stereo 61W; Gerufon-Radio Walter (ID = 1800844) Radio
Use red slider bar for more.
Ultra-Stereo 61W; Gerufon-Radio Walter (ID = 2130702) Radio
Gerufon-Radio Walter: Ultra-Stereo 61W [Radio] ID = 2130702 1024x770
Select picture or schematic to display from thumbnails on the right and click for download.
For model Ultra-Stereo 61W, Gerufon-Radio Walter Velten KG, Radiogerätefabrik Quedlinburg; Quedlinburg/Harz (Ostd.)

Country:  Germany
Manufacturer / Brand:  Gerufon-Radio Walter Velten KG, Radiogerätefabrik Quedlinburg; Quedlinburg/Harz (Ostd.)
Year: 1961/1962 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 13: ECC85 EF89 EF89 ECH81 EM84 EF80 EAA91 EBF89 EF86 EF86 EZ81 ECL82 ECL82
Main principle Superheterodyne (common); ZF/IF 468/10700 kHz
Tuned circuits 9 AM circuit(s)     11 FM circuit(s)
Wave bands Broadcast, Long Wave, Short Wave plus FM or UHF.
Details
Power type and voltage Alternating Current supply (AC) / 110/127/220 Volt
Loudspeaker 3 Loudspeakers
Power out
from Radiomuseum.org Model: Ultra-Stereo 61W - Gerufon-Radio Walter Velten KG
Material Wooden case
Shape Tablemodel with Push Buttons.
Dimensions (WHD) 750 x 450 x 360 mm / 29.5 x 17.7 x 14.2 inch
Notes NF-Stereo, Balance-Regler mit Fernbedienung. 4-Tasten-Klangregister im Tastensatz, Ferritantenne drehbar.
Net weight (2.2 lb = 1 kg) 23.6 kg / 51 lb 15.7 oz (51.982 lb)
Price in first year of sale 855.00 DM
Source of data Radiokatalog Band 2, Ernst Erb
Mentioned in -- Collector info (Sammler)

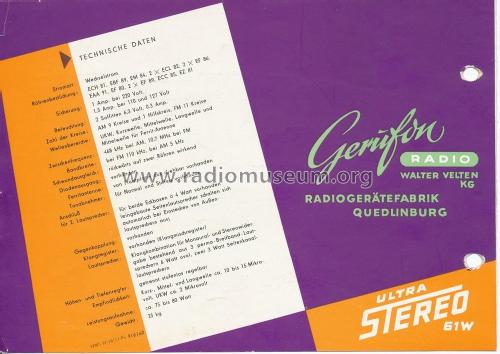

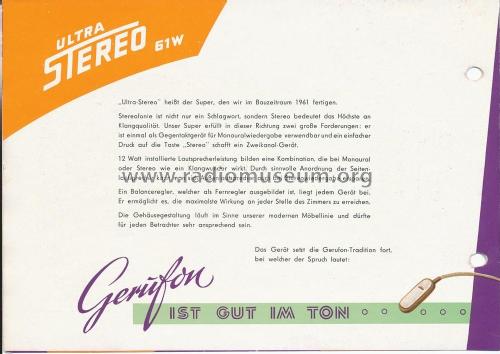

Literature/Schematics (1) -- Original prospect or advert

Model page created by Uwe Krause. See "Data change" for further contributors.



All listed radios etc. from Gerufon-Radio Walter Velten KG, Radiogerätefabrik Quedlinburg; Quedlinburg/Harz (Ostd.)
Here you find 39 models, 28 with images and 35 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
