For model 1171D24 (WTG-79814), Bradford; (brand of chain stores W.T.Grant Co.), Lynn MA:
Image after convergence and color drive and color screen adjustments.

Country:  United States of America (USA)
Manufacturer / Brand:  Bradford; (brand of chain stores W.T.Grant Co.), Lynn MA
Year: 1974 Category: Television Receiver (TV) or Monitor
Valves / Tubes 12: 10VABP22 8AR11 8BQ11 12BF11 11BT11 8BU11 6AC10 11FY7 6LT8 12JF5 17BW3 1DG3A
Semiconductors (the count is only for transistors) 1: GE-11
Main principle Superhet, double/triple conversion; ZF/IF 42000 kHz; something special ? Please give information (notes)
Wave bands Wave Bands given in the notes.
Details
Power type and voltage Line (AC, UC or DC not known) / 120 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 3 inch = 7.6 cm
Power out 1.8 W (unknown quality)
from Radiomuseum.org Model: 1171D24 - Bradford; brand of chain
Material Modern plastics (no Bakelite or Catalin)
Shape Tablemodel, with any shape - general.
Dimensions (WHD) 17 x 16 x 11 inch / 432 x 406 x 279 mm
Notes Bradford 1171D24 Ch= WTG-79814 (Porta-color clone);
NTSC portable style TV set with US standard VHF and UHF tuner (2-13 for VHF and 14-83 for UHF).
Transistor type is GE-11 in UHF tuner.
Net weight (2.2 lb = 1 kg) 9.8 kg / 21 lb 9.4 oz (21.586 lb)

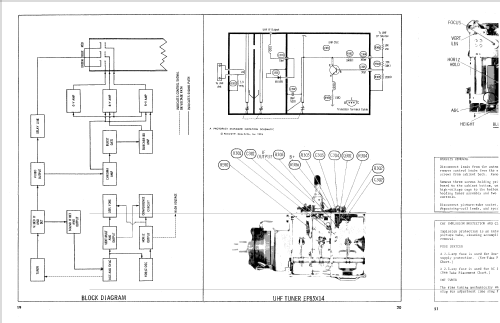

Literature/Schematics (1) Photofact Folder, Howard W. SAMS (set 1394 folder 1)
