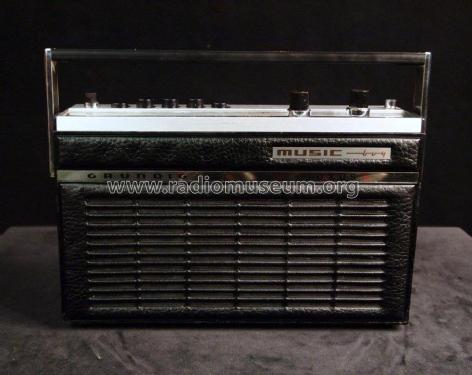

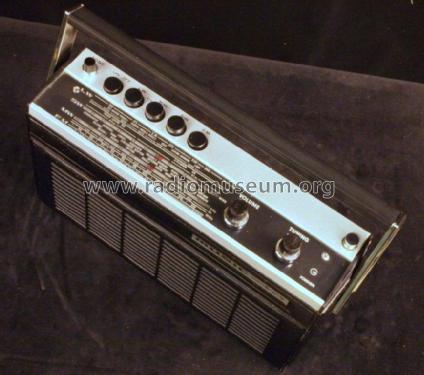

Music-Boy Luxus 210E

Music-Boy Luxus 210E; Grundig Radio- (ID = 350049) Radio

Music-Boy Luxus 210E; Grundig Radio- (ID = 350050) Radio

Music-Boy Luxus 210E; Grundig Radio- (ID = 350051) Radio

Music-Boy Luxus 210E; Grundig Radio- (ID = 350052) Radio
Music-Boy Luxus 210E; Grundig Radio- (ID = 790487) Radio Music-Boy Luxus 210E; Grundig Radio- (ID = 997796) Radio
Music-Boy Luxus 210E; Grundig Radio- (ID = 997797) Radio Music-Boy Luxus 210E; Grundig Radio- (ID = 997799) Radio
Music-Boy Luxus 210E; Grundig Radio- (ID = 997800) Radio Music-Boy Luxus 210E; Grundig Radio- (ID = 1541291) Radio
Use red slider bar for more.
Music-Boy Luxus 210E; Grundig Radio- (ID = 790487) Radio
Grundig Radio-: Music-Boy Luxus 210E [Radio] ID = 790487 654x648
Select picture or schematic to display from thumbnails on the right and click for download.
For model Music-Boy Luxus 210E, Grundig (Radio-Vertrieb, RVF, Radiowerke):
Da catalogo Grundig

Country:  Germany
Manufacturer / Brand:  Grundig (Radio-Vertrieb, RVF, Radiowerke)
alternative name

Grundig Portugal || Grundig USA / Lextronix
Year: 1970 Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) 10: BF255 BF241 BF241 BF241 BF240 BF241 BC108 BC181 AC188 AC187
Main principle Superheterodyne (common); ZF/IF 460/10700 kHz; 3 AF stage(s)
Wave bands Broadcast, Long Wave, Short Wave plus FM or UHF.
Details
Power type and voltage Dry Batteries / 9 Volt
Loudspeaker
Power out
from Radiomuseum.org Model: Music-Boy Luxus 210E - Grundig Radio-Vertrieb, RVF,
Shape Portable set > 8 inch (also usable without mains)
Notes

UKW bis 108 MHz.

Literature/Schematics (1) -- Original-techn. papers.

Model page created by Pius Steiner. See "Data change" for further contributors.
