Musikgerät 1088S

Musikgerät 1088S; Grundig Radio- (ID = 217278) Radio
Musikgerät 1088S; Grundig Radio- (ID = 2021892) Radio Musikgerät 1088S; Grundig Radio- (ID = 2021893) Radio

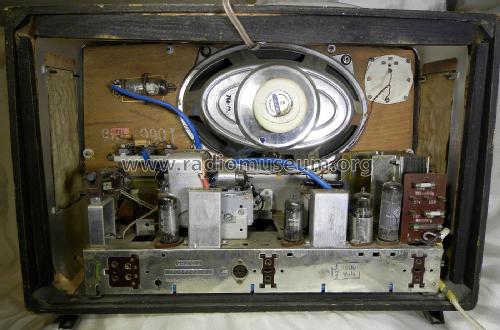

Musikgerät 1088S; Grundig Radio- (ID = 2021894) Radio
Use red slider bar for more.
Musikgerät 1088S; Grundig Radio- (ID = 2021892) Radio
Grundig Radio-: Musikgerät 1088S [Radio] ID = 2021892 1400x1203
Select picture or schematic to display from thumbnails on the right and click for download.
For model Musikgerät 1088S, Grundig (Radio-Vertrieb, RVF, Radiowerke):
Grundig 1088S front

Country:  Germany
Manufacturer / Brand:  Grundig (Radio-Vertrieb, RVF, Radiowerke)
alternative name

Grundig Portugal || Grundig USA / Lextronix
Year: 1957/1958 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 6: ECC85 ECH81 EF89 EABC80 EM84 EL84
Main principle Super-Heterodyne (Super in general); ZF/IF 460 kHz
Tuned circuits 7 AM circuit(s)     9 FM circuit(s)
Wave bands Broadcast, Long Wave, Short Wave plus FM or UHF.
Details
Power type and voltage Alternating Current supply (AC) / 110-220 Volt
Loudspeaker 2 Loudspeakers
Power out
from Radiomuseum.org Model: Musikgerät 1088S - Grundig Radio-Vertrieb, RVF,
Shape Tablemodel with Push Buttons.
Literature/Schematics (1) -- Original-techn. papers.

Model page created by Josef Pilz. See "Data change" for further contributors.
