Studio-Abhöreinrichtung VS1-31
Heli Gerätebau, Hempel KG; Limbach-Oberfrohna, (Ostd.)
- Country
- Germany
- Manufacturer / Brand
- Heli Gerätebau, Hempel KG; Limbach-Oberfrohna, (Ostd.)
- Year
- 1967 ?
- Category
- Loudspeaker, headphone or earphone
- Radiomuseum.org ID
- 304385
-
- alternative name: Gerätebau Limbach VEB
- Brand: VEB Elektromechanik Mittweida
- Number of Transistors
- Semiconductors present.
- Semiconductors
- Wave bands
- - without
- Details
- Loudspeaker + integr.Amplifier
- Power type and voltage
- Alternating Current supply (AC) / 220 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 31.5 cm = 12.4 inch
- Power out
- 50 W (unknown quality)
- Material
- Various materials
- from Radiomuseum.org

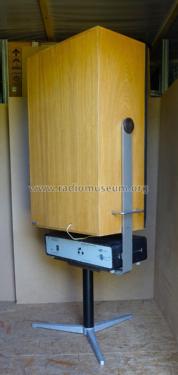

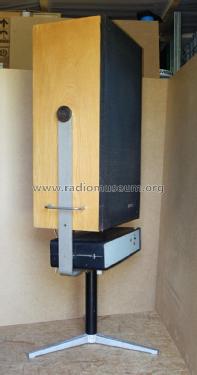

- Model: Studio-Abhöreinrichtung VS1-31 - Heli Gerätebau, Hempel KG;
- Shape
- Console with any shape - in general
- Dimensions (WHD)
- 540 x 900 x 330 mm / 21.3 x 35.4 x 13 inch
- Notes
-
Abhörlautsprecher für Studio-Anwendungen.
Als Treiber ist ein hochwertiger Koaxiallautsprecher Schulz TH 315 verbaut. Der Verstärker ist ein Heli V731/1. Die Box ist auch als Einzelkomponente Heli O731 angelegt.
- Net weight (2.2 lb = 1 kg)
- 40 kg / 88 lb 1.7 oz (88.106 lb)
- Mentioned in
- - - Manufacturers Literature
- Author
- Model page created by Gerhard Wickern. See "Data change" for further contributors.
