Little Nipper - Super 5 65-54

Little Nipper - Super 5 65-54; His Master's Voice (ID = 2087196) Radio

Little Nipper - Super 5 65-54; His Master's Voice (ID = 2087197) Radio
Little Nipper - Super 5 65-54; His Master's Voice (ID = 2093171) Radio Little Nipper - Super 5 65-54; His Master's Voice (ID = 1309667) Radio
Little Nipper - Super 5 65-54; His Master's Voice (ID = 1662188) Radio Little Nipper - Super 5 65-54; His Master's Voice (ID = 1309663) Radio
Little Nipper - Super 5 65-54; His Master's Voice (ID = 1309664) Radio Little Nipper - Super 5 65-54; His Master's Voice (ID = 1309665) Radio

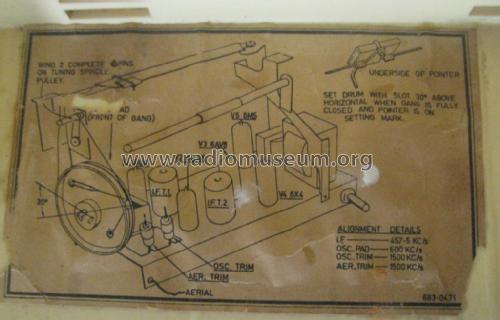

Little Nipper - Super 5 65-54; His Master's Voice (ID = 1309666) Radio Little Nipper - Super 5 65-54; His Master's Voice (ID = 2093172) Radio
Little Nipper - Super 5 65-54; His Master's Voice (ID = 2344414) Radio Little Nipper - Super 5 65-54; His Master's Voice (ID = 2344415) Radio
Use red slider bar for more.
Little Nipper - Super 5 65-54; His Master's Voice (ID = 2093171) Radio
His Master's Voice: Little Nipper - Super 5 65-54 [Radio] ID = 2093171 1024x760
Select picture or schematic to display from thumbnails on the right and click for download.
For model Little Nipper - Super 5 65-54, His Master's Voice (HMV, H.M.V.), EMI (Australia) Ltd.; Sydney, NSW

Country:  Australia
Manufacturer / Brand:  His Master's Voice (HMV, H.M.V.), EMI (Australia) Ltd.; Sydney, NSW
Year: 1960–1968 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 5: 6AN7 6BA6 6AV6 6M5 6X4
Main principle Super-Heterodyne (Super in general); ZF/IF 457.5 kHz; 3 AF stage(s)
Tuned circuits 6 AM circuit(s)
Wave bands Broadcast only (MW).
Details
Power type and voltage Alternating Current supply (AC) / 225-250 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 12.5 cm = 4.9 inch
Power out 0.25 W (unknown quality)
from Radiomuseum.org Model: Little Nipper - Super 5 65-54 - His Master's Voice HMV, H.M.V.
Material Modern plastics (no Bakelite or Catalin)
Shape Tablemodel, Mantel/Midget/Compact up to 14" width, but not a Portable (See power data. Sometimes with handle but for mains only).
Dimensions (WHD) 295 x 175 x 135 mm / 11.6 x 6.9 x 5.3 inch
Notes

Uses both the "Little Nipper" designation from a long line of previous models and "Super 5". The circuit appears to be very similar to the "Little Nipper 64-52".

Plastic two-tone cabinet with White front & Beige, Gold, Pink, Bronze, Green, Turquiose & Charcoal Black coloured backs.

This model was HMV's AC mains powered valve mantel mainstay throughout the 1960's & was on sale until 1968. Price after the introduction of decimal currency in Australia (14/2/1966) was $52.50.

Net weight (2.2 lb = 1 kg) 3.750 kg / 8 lb 4.2 oz (8.26 lb)
Price in first year of sale 24.15 AUS £
Literature/Schematics (1) - - Manufacturers Literature (HMV Model Data Sheet for Model 65-54.)
Literature/Schematics (2) - - Manufacturers Literature (HMV Service Manual for Chassis Type 65.)
Literature/Schematics (3) J.R. Publications Radio Service Handbook (R.V. Series, Vol. 1, 1963, Page H72.)

Model page created by Brian Wilson. See "Data change" for further contributors.



All listed radios etc. from His Master's Voice (HMV, H.M.V.), EMI (Australia) Ltd.; Sydney, NSW
Here you find 524 models, 264 with images and 210 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.






Forum contributions about this model
His Master's Voice: Little Nipper - Super 5 65-54
Threads: 1 | Posts: 2
Hits: 513     Replies: 1
hismasters: Converter valve type
Jim Greig
11.Nov.17
  1

Hi,

The model page lists the converter as type 6BE6.  The circuit diagram attached shows it as a 6AN7 (and my model uses the 6AN7).

I don't  know if this is a variant or an error.

Regards

Jim Greig





Mark Hippenstiel
11.Nov.17
  2

I have submitted a change to list 6AN7. The original creator of this model must have erroneuously stated 6BE6 as his own set also is (or should be) equipped with a 6AN7.

Thanks for pointing this out.

Regards
Mark
