Caballero 8454 SX8454

Caballero 8454 SX8454; Horny Hornyphon; (ID = 676825) Radio

Caballero 8454 SX8454; Horny Hornyphon; (ID = 676826) Radio

Caballero 8454 SX8454; Horny Hornyphon; (ID = 676827) Radio
Caballero 8454 SX8454; Horny Hornyphon; (ID = 676918) Radio Caballero 8454 SX8454; Horny Hornyphon; (ID = 431405) Radio
Use red slider bar for more.
Caballero 8454 SX8454; Horny Hornyphon; (ID = 676918) Radio
Horny Hornyphon;: Caballero 8454 SX8454 [Radio] ID = 676918 933x834
Select picture or schematic to display from thumbnails on the right and click for download.
For model Caballero 8454 SX8454, Horny (Hornyphon); Wien:

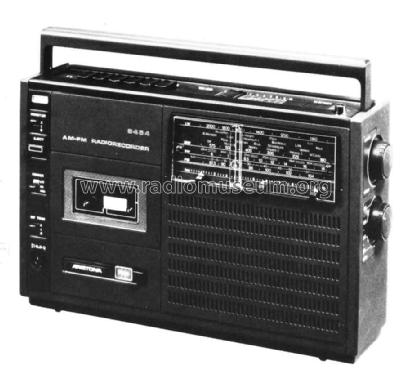

Bild aus Servicedoku.

Country:  Austria
Manufacturer / Brand:  Horny (Hornyphon); Wien
Brand

Hornyphon
Year: 1975–1977 Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) 21:
Main principle Superheterodyne (common); ZF/IF 460/10700 kHz
Wave bands Broadcast, Long Wave, Short Wave plus FM or UHF.
Details Cassette-Recorder or -Player
Power type and voltage Line / Batteries (any type) / 110-127; 220-240 / 6 × 1,5 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
Power out 2 W (unknown quality)
from Radiomuseum.org Model: Caballero 8454 SX8454 - Horny Hornyphon; Wien
Material Plastics (no bakelite or catalin)
Shape Portable set > 8 inch (also usable without mains)
Dimensions (WHD) 320 x 205 x 85 mm / 12.6 x 8.1 x 3.3 inch
Notes 4-Band-Radio-Recorder. AFC, RIF (3 stufig schaltbar).
80 - 10.000 Hz (Chrom).
Anschlüsse für Mikrofon/Plattenspieler oder TB/Cassetten-Recorder.
Gehäuseausführung: Schwarz
Parallelgerät zum Philips 22RR454
Net weight (2.2 lb = 1 kg) 2.8 kg / 6 lb 2.7 oz (6.167 lb)

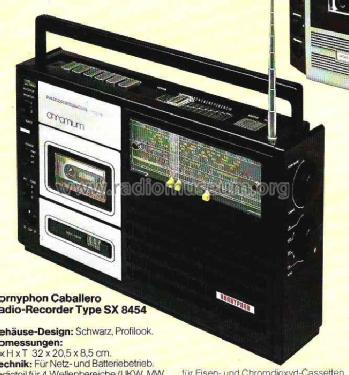

Source of data -- Original prospect or advert

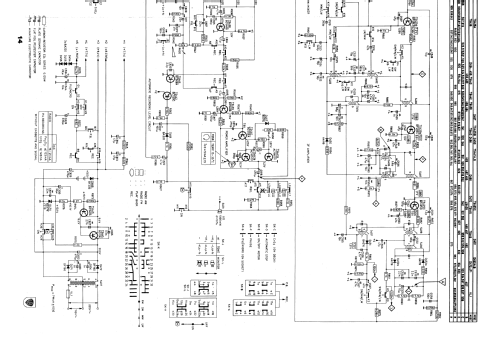

Literature/Schematics (1) -- Original-techn. papers.

Model page created by Hannes Wurnitsch. See "Data change" for further contributors.
