Cicero W59T546 /00 /03 Ch= F4-KÄ (F4-N)

Cicero W59T546 /00 /03 Ch= F4-KÄ ; Horny Hornyphon; (ID = 292493) Television

Cicero W59T546 /00 /03 Ch= F4-KÄ ; Horny Hornyphon; (ID = 292494) Television

Cicero W59T546 /00 /03 Ch= F4-KÄ ; Horny Hornyphon; (ID = 1954050) Television
Cicero W59T546 /00 /03 Ch= F4-KÄ ; Horny Hornyphon; (ID = 153940) Television
Use red slider bar for more.
Cicero W59T546 /00 /03 Ch= F4-KÄ ; Horny Hornyphon; (ID = 153940) Television

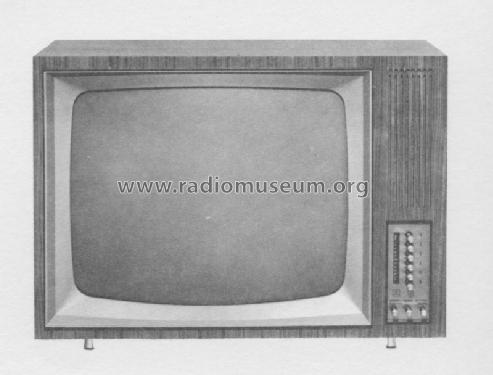

Horny Hornyphon;: Cicero W59T546 /00 /03 Ch= F4-KÄ [Television] ID = 153940 800x608
Select picture or schematic to display from thumbnails on the right and click for download.
For model Cicero W59T546 /00 /03 Ch= F4-KÄ (F4-N), Horny (Hornyphon); Wien

Country:  Austria
Manufacturer / Brand:  Horny (Hornyphon); Wien
Brand

Hornyphon
Year: 1968 Category: Television Receiver (TV) or Monitor
Valves / Tubes 12: EF183 PCF200 PCL84 PCL86 PL84 PCH200 PCF802 PCL805 PL504 PY88 DY802 A59-11W
Semiconductors (the count is only for transistors) 8: AF239 AF239 AF139 BF173 AF126 BF115 AC125 AC132
Main principle Superheterodyne (common)
Wave bands VHF incl. FM and/or UHF (see notes for details)
Details
Power type and voltage Alternating Current supply (AC) / 220 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical
Power out
from Radiomuseum.org Model: Cicero W59T546 /00 /03 Ch= F4-KÄ - Horny Hornyphon; Wien
Material Wooden case
Shape Tablemodel with Push Buttons.
Dimensions (WHD) 703 x 505 x 370 mm / 27.7 x 19.9 x 14.6 inch
Notes

Fernsehband VHF (I+III), UHF (IV/V).
59-cm-Rechteckbildröhre.

2 Ausführungen:
/00 = dunkel-hochglänzend;
/03 = hell-matt.

Net weight (2.2 lb = 1 kg) 25 kg / 55 lb 1.1 oz (55.066 lb)
Source of data Radiokatalog Band 2, Ernst Erb
Literature/Schematics (1) -- Original-techn. papers.

Model page created by Hannes Wurnitsch. See "Data change" for further contributors.
