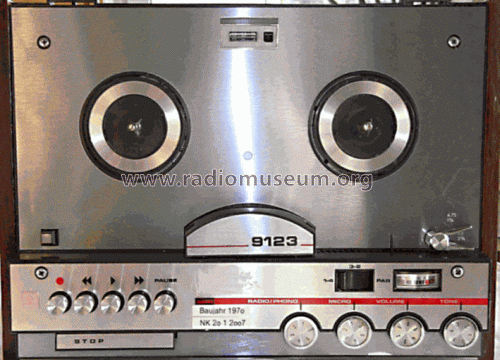

Diola Luxus 9123 WM9123A /50

Horny (Hornyphon); Wien

  • Year
  • 1968
  • Category
  • Sound/Video Recorder and/or Player
  • Radiomuseum.org ID
  • 79839
    • Brand: Hornyphon

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Transistors
  • 10
  • Main principle
  • Audio-Amplification
  • Wave bands
  • - without
  • Details
  • Tape Recorder
  • Power type and voltage
  • Alternating Current supply (AC) / 110, 127, 220, 245 Volt
  • Loudspeaker
  • Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical
  • Power out
  • 4 W (unknown quality)
  • Material
  • Wooden case
  • from Radiomuseum.org
  • Model: Diola Luxus 9123 WM9123A /50 - Horny Hornyphon; Wien
  • Shape
  • Tablemodel, Box - most often with Lid (NOT slant panel).
  • Dimensions (WHD)
  • 420 x 140 x 300 mm / 16.5 x 5.5 x 11.8 inch
  • Notes
  • 4-Spur Tonbandgerät, Geschwindigkeit 4,75 und 9,5 cm/sec.
    Parallelgerät zu Philips Maestro 4308.

  • Net weight (2.2 lb = 1 kg)
  • 7.5 kg / 16 lb 8.3 oz (16.52 lb)
  • Source of data
  • Radiokatalog Band 2, Ernst Erb
  • Literature/Schematics (1)
  • -- Original-techn. papers.
  • Author
  • Model page created by Wolfgang Bauer. See "Data change" for further contributors.
