Tamina de Luxe W6312

Tamina de Luxe W6312; Horny Hornyphon; (ID = 259176) Radio

Tamina de Luxe W6312; Horny Hornyphon; (ID = 259181) Radio

Tamina de Luxe W6312; Horny Hornyphon; (ID = 259182) Radio

Tamina de Luxe W6312; Horny Hornyphon; (ID = 259183) Radio
Tamina de Luxe W6312; Horny Hornyphon; (ID = 1674494) Radio Tamina de Luxe W6312; Horny Hornyphon; (ID = 1674495) Radio
Tamina de Luxe W6312; Horny Hornyphon; (ID = 111910) Radio
Use red slider bar for more.

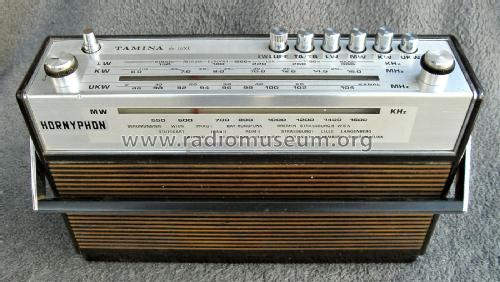

Tamina de Luxe W6312; Horny Hornyphon; (ID = 1674494) Radio
Horny Hornyphon;: Tamina de Luxe W6312 [Radio] ID = 1674494 933x700
Select picture or schematic to display from thumbnails on the right and click for download.
For model Tamina de Luxe W6312, Horny (Hornyphon); Wien

Country:  Austria
Manufacturer / Brand:  Horny (Hornyphon); Wien
Brand

Hornyphon
Year: 1973 Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) 10:
Main principle Super-Heterodyne (Super in general); ZF/IF 460 kHz
Wave bands Broadcast, Long Wave, Short Wave plus FM or UHF.
Details
Power type and voltage Line / Batteries (any type) / 220 / 6 x 1,5 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
Power out
from Radiomuseum.org Model: Tamina de Luxe W6312 - Horny Hornyphon; Wien
Material Various materials
Shape Portable set > 8 inch (also usable without mains)
Dimensions (WHD) 260 x 165 x 65 mm / 10.2 x 6.5 x 2.6 inch
Net weight (2.2 lb = 1 kg) 1.4 kg / 3 lb 1.3 oz (3.084 lb)
Source of data -- Original-techn. papers. / Radiokatalog Band 2, Ernst Erb

Model page created by Hannes Wurnitsch. See "Data change" for further contributors.
