For model Traviata 56 W775A, Horny (Hornyphon); Wien

Country:  Austria
Manufacturer / Brand:  Horny (Hornyphon); Wien
Brand

Hornyphon
Year: 1955/1956 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 8: ECC85 ECH81 EF89 EF89 EM80 EABC80 EL84 EZ80
Main principle Super-Heterodyne (Super in general); ZF/IF 460/10700 kHz
Tuned circuits 6 AM circuit(s)     11 FM circuit(s)
Wave bands Broadcast, Long Wave, Short Wave plus FM or UHF.
Details
Power type and voltage Alternating Current supply (AC) / 110-240 Volt
Loudspeaker 3 Loudspeakers
Power out
from Radiomuseum.org Model: Traviata 56 W775A - Horny Hornyphon; Wien
Material Wooden case
Shape Tablemodel with Push Buttons.
Dimensions (WHD) 660 x 440 x 300 mm / 26 x 17.3 x 11.8 inch
Notes 3-D; 8 Tasten
Das Gerät hat 4 Skalenzeiger: Lokal (MW), Stellung Ferritantenne, UKW-Bereich, AM-Bereiche (LW MW KW).
Mit den entsprechenden Tasten können 3 vorgewählte Stationen abgerufen werden.
Parallelgerät zum Philips BA753A.
Price in first year of sale 3'380.00 ATS
Collectors' prices
External source of data E. Erb 3-907007-36-0
Source of data Radiokatalog Band 2, Ernst Erb
Circuit diagram reference Unterlagen E.Erb

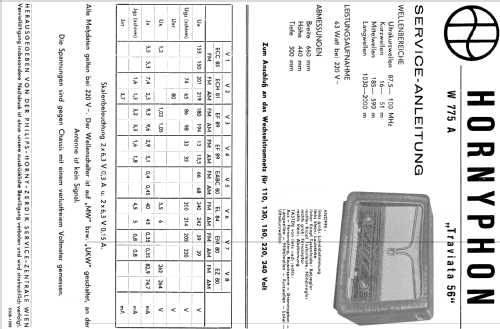

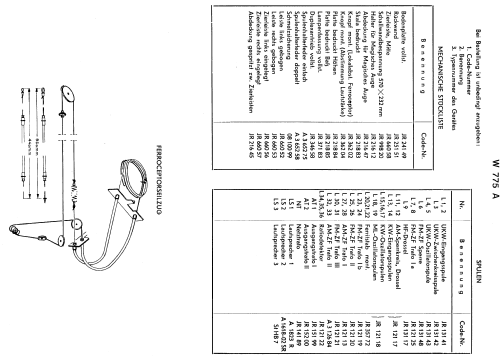

Literature/Schematics (1) -- Original-techn. papers.
Picture reference Das Modell ist im «Radiokatalog» (Erb) abgebildet.
