Altoparlante Ellittico C 7-18-54
IREL - Industrie Radio Elettriche Liguri, Genova
- Country
- Italy
- Manufacturer / Brand
- IREL - Industrie Radio Elettriche Liguri, Genova
- Year
- 1973 ??
- Category
- Loudspeaker, headphone or earphone
- Radiomuseum.org ID
- 358397
- Wave bands
- - without
- Power type and voltage
- No Power needed
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical
- Power out
- 3.5 W (unknown quality)
- Material
- Metal case
- from Radiomuseum.org
- Model: Altoparlante Ellittico C 7-18-54 - IREL - Industrie Radio
- Shape
- Chassis only or for «building in»
- Dimensions (WHD)
- 180 x 77 x 59 mm / 7.1 x 3 x 2.3 inch
- Notes
-
Caratteristiche:
- Risposta in Frequenza: 110 ÷ 8.000 Hz
- Flusso: 8.600 Gauss
- Risonanza: 130 Hz
- Impedenza: 4 Ω
Numero di catalogo GBC: AC/1390-00
- Mentioned in

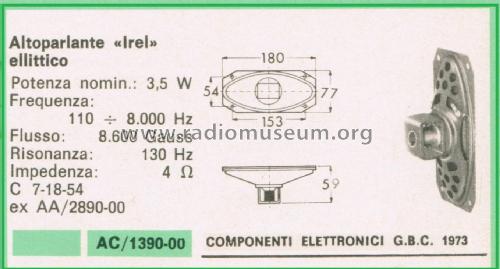

- -- Original prospect or advert (GBC Componenti Elettronici, edizione 1973.)
- Author
- Model page created by Pier Antonio Aluffi. See "Data change" for further contributors.
