GOLF europa 101 Netz 52140149

GOLF europa 101 Netz 52140149; ITT Schaub-Lorenz (ID = 55227) Radio

GOLF europa 101 Netz 52140149; ITT Schaub-Lorenz (ID = 55228) Radio

GOLF europa 101 Netz 52140149; ITT Schaub-Lorenz (ID = 55229) Radio

GOLF europa 101 Netz 52140149; ITT Schaub-Lorenz (ID = 55230) Radio

GOLF europa 101 Netz 52140149; ITT Schaub-Lorenz (ID = 55231) Radio

GOLF europa 101 Netz 52140149; ITT Schaub-Lorenz (ID = 55232) Radio

GOLF europa 101 Netz 52140149; ITT Schaub-Lorenz (ID = 55233) Radio

GOLF europa 101 Netz 52140149; ITT Schaub-Lorenz (ID = 55234) Radio

GOLF europa 101 Netz 52140149; ITT Schaub-Lorenz (ID = 55235) Radio

GOLF europa 101 Netz 52140149; ITT Schaub-Lorenz (ID = 55236) Radio
GOLF europa 101 Netz 52140149; ITT Schaub-Lorenz (ID = 73358) Radio GOLF europa 101 Netz 52140149; ITT Schaub-Lorenz (ID = 165738) Radio
GOLF europa 101 Netz 52140149; ITT Schaub-Lorenz (ID = 181591) Radio GOLF europa 101 Netz 52140149; ITT Schaub-Lorenz (ID = 2467429) Radio
GOLF europa 101 Netz 52140149; ITT Schaub-Lorenz (ID = 2083250) Radio GOLF europa 101 Netz 52140149; ITT Schaub-Lorenz (ID = 2083251) Radio
GOLF europa 101 Netz 52140149; ITT Schaub-Lorenz (ID = 2083252) Radio
Use red slider bar for more.
GOLF europa 101 Netz 52140149; ITT Schaub-Lorenz (ID = 73358) Radio
ITT Schaub-Lorenz: GOLF europa 101 Netz 52140149 [Radio] ID = 73358 902x634
Select picture or schematic to display from thumbnails on the right and click for download.
For model GOLF europa 101 Netz 52140149, ITT Schaub-Lorenz:

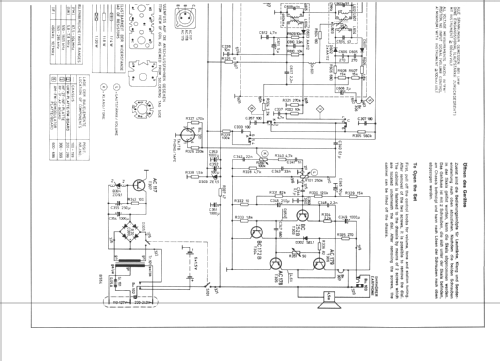

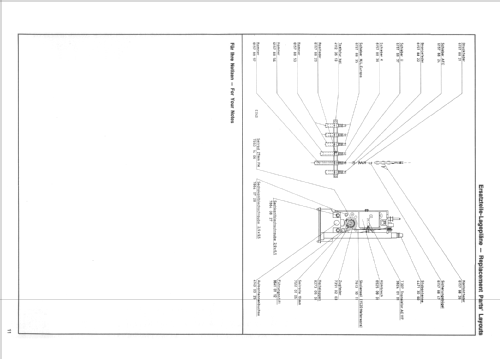

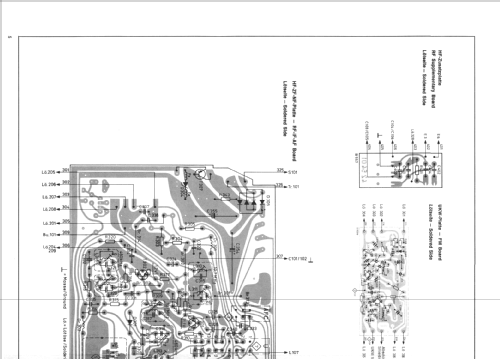

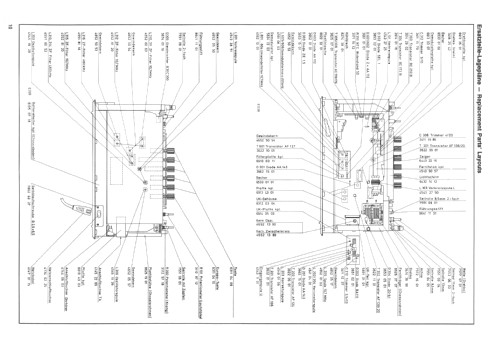

aus Serviceanleitung

Country:  Germany
Manufacturer / Brand:  ITT Schaub-Lorenz
Year: 1970–1972 Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) 10:
Main principle Superheterodyne (common); ZF/IF 460/10700 kHz
Tuned circuits 6 AM circuit(s)     9 FM circuit(s)
Wave bands Broadcast, Long Wave, Short Wave plus FM or UHF.
Details
Power type and voltage Line / Batteries (any type) / 127; 220 / 6×1,5; 2×4,5 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical
Power out 2 W (unknown quality)
from Radiomuseum.org Model: GOLF europa 101 Netz 52140149 - ITT Schaub-Lorenz
Material Modern plastics (no Bakelite or Catalin)
Shape Portable set > 8 inch (also usable without mains)
Dimensions (WHD) 305 x 165 x 80 mm / 12 x 6.5 x 3.1 inch
Notes Europa-Festsendertaste.
Net weight (2.2 lb = 1 kg) 2.5 kg / 5 lb 8.1 oz (5.507 lb)
Price in first year of sale 219.00 DM
External source of data Erb
Source of data Handbuch VDRG 1970/1971 / Radiokatalog Band 2, Ernst Erb
Literature/Schematics (1) -- Original-techn. papers.
