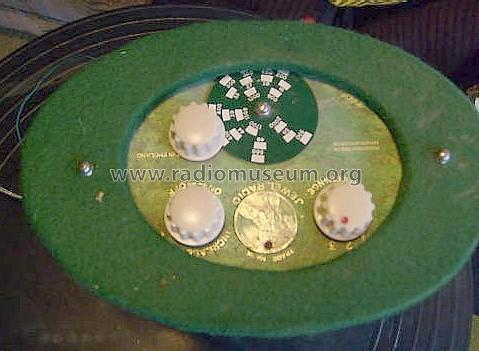

Jewel Radio,: Jewel [Radio] ID = 306948 664x700
Select picture or schematic to display from thumbnails on the right and click for download.
For model Jewel, Jewel Radio, Basildon

Country:  Great Britain (UK)
Manufacturer / Brand:  Jewel Radio, Basildon
Year: 1957 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 4: DK92 DF91 DAF91 UL41
Main principle Superheterodyne (common)
Wave bands Broadcast, Long Wave and Short Wave.
Details
Power type and voltage Alternating Current supply (AC) / 110; 225; 245 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
Power out
from Radiomuseum.org Model: Jewel - Jewel Radio, Basildon
Material Leather / canvas / plastic - over other material
Shape Miscellaneous shapes - described under notes.
Dimensions (WHD) 8 x 9 x 5.25 inch / 203 x 229 x 133 mm

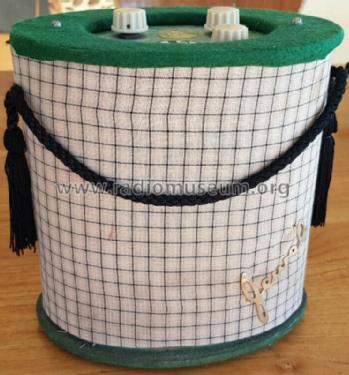

Notes Oval fabric-covered fibre case. Available in 25 colour combinations. An optional external converter (12 volt) was available for use in a car. Cost £5. This set uses an unusual tuning capacitor. A copper foil is wound onto a drum as the tuning knob is rotated. Causing a change in value of capacity.
Net weight (2.2 lb = 1 kg) 2.2 kg / 4 lb 13.5 oz (4.846 lb)
Price in first year of sale 15.00 GBP
Source of data Radio! Radio!
Mentioned in Bulletin of the British Vintage Wireless Society (BVWS, 73) (BVWS Bulletin Vol 27 Number 2)
Literature/Schematics (1)

Model page created by Konrad Birkner † 12.08.2014. See "Data change" for further contributors.



All listed radios etc. from Jewel Radio, Basildon
Here you find 1 models, 1 with images and 1 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.






Forum contributions about this model
Jewel Radio,: Jewel
Threads: 1 | Posts: 2
Hits: 1669     Replies: 1
jewel: Jewel
Keith Staines
15.Jul.07
  1

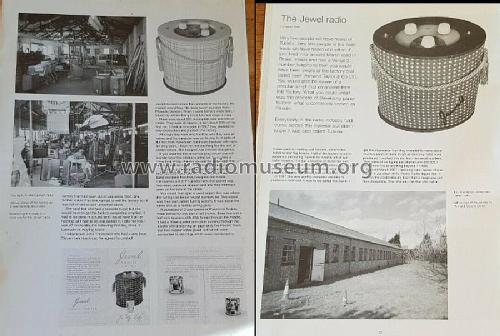

BVWS Bulletin Vol 27, Number 2. Has an article by Gerald Wells which gives some interesting information about the Jewel Company & radio set. For those that do not have access to this bulletin I have summarised the key points.

The company was created in 1957 by a parent company ARMOND TAYLOR, manufacturers of paxolin products. Jewel Radio started production of its first model the “Jewel”. However this set was not successful & the factory closed suddenly during the first year. It is thought that approximately 1000 sets were produced, with a failure at of 20%.

In March 2001 the factory was sold, but it still contained the production equipment & sets as left when the doors were closed in 1957. The owner contacted Gerald Wells of the Vintage Radio Museum (Dulwich, London, UK), & offered the contents to the Museum. Approximately 200 sets (all the rejects) & some partially built sets were recovered. These sets were repaired by the museum & have been distributed or sold.

The set is very unusual not only in its appearance but also how it works. It uses a UL41 (normally for AC/DC sets) & 3 battery valves (1.4v 50mA). The heater of the UL41 is supplied by a mains transformer, a cathode resistor creates a bias voltage. This voltage is used to feed the heaters of the 3 remaining battery valves. Another unusual feature is the tuning capacitor, it has no rigid plates. A strip of flexible copper is wound onto an insulated metal drum as the tuning knob is turned. This strip has capacity with the drum, the value dependant on the amount of strip wound against the drum. It is perhaps no wonder so many sets were rejects, but it does provide a wonderful curiosity for collectors.
Michael Watterson
29.Jul.13
  2

Did they see the American Cooler Bagpiper?
