Bella Rekord 6726W

Bella Rekord 6726W; Loewe-Opta; (ID = 2393512) Radio Bella Rekord 6726W; Loewe-Opta; (ID = 2394042) Radio
Bella Rekord 6726W; Loewe-Opta; (ID = 2394040) Radio Bella Rekord 6726W; Loewe-Opta; (ID = 2394046) Radio
Bella Rekord 6726W; Loewe-Opta; (ID = 2394041) Radio Bella Rekord 6726W; Loewe-Opta; (ID = 2394043) Radio
Bella Rekord 6726W; Loewe-Opta; (ID = 2394044) Radio Bella Rekord 6726W; Loewe-Opta; (ID = 2394045) Radio
Bella Rekord 6726W; Loewe-Opta; (ID = 2394902) Radio
Use red slider bar for more.
Bella Rekord 6726W; Loewe-Opta; (ID = 2393512) Radio
Loewe-Opta;: Bella Rekord 6726W [Radio] ID = 2393512 1400x1050
Select picture or schematic to display from thumbnails on the right and click for download.
For model Bella Rekord 6726W, Loewe-(Opta); Deutschland

Country:  Germany
Manufacturer / Brand:  Loewe-(Opta); Deutschland
alternative name

Löwe Radio
Year: 1961/1962 ? Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 6: ECC85 ECH81 EF89 EABC80 EM84 EL84
Semiconductors (the count is only for transistors) B250C75
Main principle Super-Heterodyne (Super in general); Export model
Tuned circuits 6 AM circuit(s)     10 FM circuit(s)
Wave bands Broadcast, Long Wave, Short Wave plus FM or UHF.
Details
Power type and voltage Alternating Current supply (AC) / 60 Hz, 115 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical
Power out
from Radiomuseum.org Model: Bella Rekord 6726W - Loewe-Opta; Deutschland

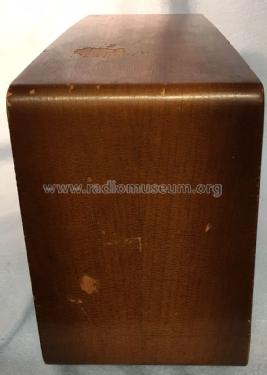

Material Wooden case
Shape Tablemodel with Push Buttons.
Dimensions (WHD) 400 x 260 x 170 mm / 15.7 x 10.2 x 6.7 inch
Notes

The model 6726W is an export variation of the model 6725W that was made for a mains voltage of 115 volts, 0.46 amps, 60 cycle.

This model has a fuse of 0.7 amps and a 7" x 5" speaker.

It does not have adjustable mains voltage like the 6725W model has.

Net weight (2.2 lb = 1 kg) 12.12 lb (12 lb 1.9 oz) / 5.502 kg

Model page created by Vincent Cappuccitti. See "Data change" for further contributors.
