Luxorita 355W

Luxorita 355W; Luxor Radio AB; (ID = 249339) Radio

Luxorita 355W; Luxor Radio AB; (ID = 249331) Radio

Luxorita 355W; Luxor Radio AB; (ID = 249340) Radio

Luxorita 355W; Luxor Radio AB; (ID = 249329) Radio
Luxorita 355W; Luxor Radio AB; (ID = 328588) Radio Luxorita 355W; Luxor Radio AB; (ID = 1609437) Radio
Luxorita 355W; Luxor Radio AB; (ID = 1609438) Radio Luxorita 355W; Luxor Radio AB; (ID = 1609440) Radio
Luxorita 355W; Luxor Radio AB; (ID = 328589) Radio Luxorita 355W; Luxor Radio AB; (ID = 283909) Radio

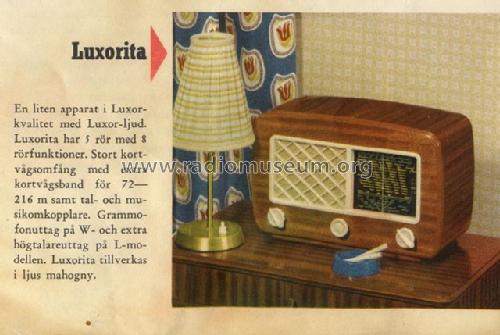

Luxorita 355W; Luxor Radio AB; (ID = 215789) Radio Luxorita 355W; Luxor Radio AB; (ID = 283910) Radio
Luxorita 355W; Luxor Radio AB; (ID = 1609441) Radio Luxorita 355W; Luxor Radio AB; (ID = 1609445) Radio
Use red slider bar for more.
Luxorita 355W; Luxor Radio AB; (ID = 328588) Radio
Luxor Radio AB;: Luxorita 355W [Radio] ID = 328588 640x480
Select picture or schematic to display from thumbnails on the right and click for download.
For model Luxorita 355W, Luxor Radio AB; Motala

Country:  Sweden
Manufacturer / Brand:  Luxor Radio AB; Motala
alternative name

Luxorita - voir Luxor Radio AB Suède (Sweden)
Year: 1950 ?? Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 5: 6J6 6BA6 6AT6 6V6GT 6X4
Main principle Superheterodyne (common); ZF/IF 462 kHz
Wave bands Broadcast, Long Wave and Short Wave.
Details
Power type and voltage Alternating Current supply (AC) / 127; 220 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 17 cm = 6.7 inch
Power out
from Radiomuseum.org Model: Luxorita 355W - Luxor Radio AB; Motala
Material Wooden case
Shape Tablemodel, with any shape - general.
Dimensions (WHD) 242 x 219 x 148 mm / 9.5 x 8.6 x 5.8 inch
Notes Dial lamp: 6,3V 0,3A
Net weight (2.2 lb = 1 kg) 5 kg / 11 lb 0.2 oz (11.013 lb)
Source of data - - Data from my own collection

Model page created by Jose Duarte Costa. See "Data change" for further contributors.
