Musiktruhe 707GW
Luxor Radio AB; Motala
- Country
- Sweden
- Manufacturer / Brand
- Luxor Radio AB; Motala
- Year
- 1939 ?
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 252609
-
- alternative name: Luxorita - voir Luxor Radio AB Suède (Sweden)
Luxor Plattenspieler-Laufwerk Type HW
Lautsprecher
- Number of Tubes
- 7
- Main principle
- Superheterodyne (common)
- Wave bands
- Broadcast, Long Wave and Short Wave.
- Details
- Record Player (not changer)
- Power type and voltage
- Alternating Current supply (AC) / 110; 240 Volt

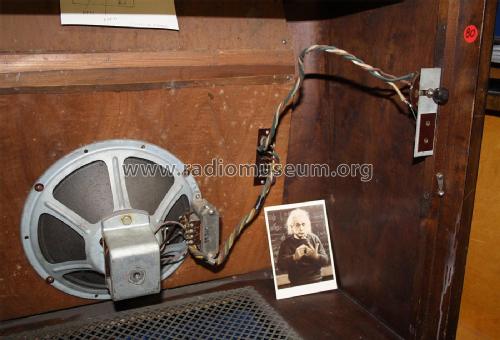

- Loudspeaker
- Electro Magnetic Dynamic LS (moving-coil with field excitation coil) / Ø 20 cm = 7.9 inch
- Material
- Wooden case
- from Radiomuseum.org
- Model: Musiktruhe 707GW - Luxor Radio AB; Motala
- Shape
- Console with any shape - in general
- Dimensions (WHD)
- 720 x 730 x 400 mm / 28.3 x 28.7 x 15.7 inch
- Notes
-
Musiktruhe Luxor 707GW.
Mit Thorens Plattenspieler nur für Schellack 78 Upm Platten.Auch mit Stahlnadel-Wechsler Luxor HW für 78 rpm.
Gleichrichteröhre AZ12 und 5V4G sind nicht gegeneinander austauschbar.
- Net weight (2.2 lb = 1 kg)
- 30 kg / 66 lb 1.3 oz (66.079 lb)
- Author
- Model page created by Ernst Moretti. See "Data change" for further contributors.
