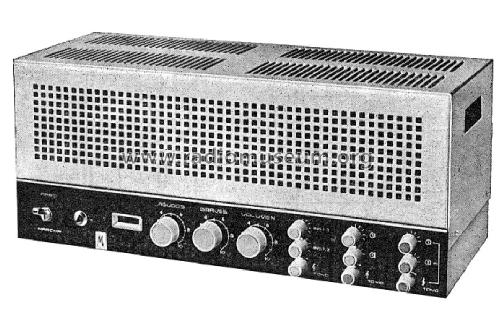

Magnedine Orquestal 45 Ch= 212

Magestico (Magnedine, Radio Pujals); Barcelona

  • Year
  • 1965 ??
  • Category
  • Audio Amplifier or -mixer
  • Radiomuseum.org ID
  • 230102

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Tubes
  • 8
  • Main principle
  • Audio-Amplification
  • Wave bands
  • - without
  • Power type and voltage
  • Alternating Current supply (AC) / 125; 220 Volt
  • Loudspeaker
  • - This model requires external speaker(s).
  • Power out
  • 35 W (50 W max.)
  • Material
  • Metal case
  • from Radiomuseum.org
  • Model: Magnedine Orquestal 45 Ch= 212 - Magestico Magnedine, Radio
  • Shape
  • Tablemodel, low profile (big size).
  • Literature/Schematics (1)
  • -- Schematic
  • Author
  • Model page created by Miguel Bravo-Cos. See "Data change" for further contributors.
