Mercury TR300 (300TR)

Mercury TR300 ; Magnavox; where? (ID = 713910) Radio

Mercury TR300 ; Magnavox; where? (ID = 713914) Radio

Mercury TR300 ; Magnavox; where? (ID = 713915) Radio
Mercury TR300 ; Magnavox; where? (ID = 2324075) Radio Mercury TR300 ; Magnavox; where? (ID = 2324076) Radio
Mercury TR300 ; Magnavox; where? (ID = 2324077) Radio
Use red slider bar for more.
Mercury TR300 ; Magnavox; where? (ID = 2324075) Radio

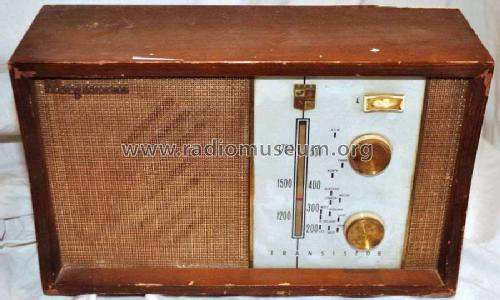

Magnavox; where?: Mercury TR300 [Radio] ID = 2324075 900x540
Select picture or schematic to display from thumbnails on the right and click for download.
For model Mercury TR300 (300TR), Magnavox; (where?):
Ebay UK auction item 323532293558 seller armandbin

Country:  Japan
Manufacturer / Brand:  Magnavox; (where?)
Year: 1960 Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) 6: XA102 XA101 XA101 XB103 XC131 XC131
Main principle Superheterodyne (common); ZF/IF 470 kHz; 2 AF stage(s)
Tuned circuits 7 AM circuit(s)
Wave bands Broadcast (MW) and Long Wave.
Details
Power type and voltage Dry Batteries / 2 x 6 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
Power out
from Radiomuseum.org Model: Mercury TR300 - Magnavox; where?
Shape Tablemodel, with any shape - general.
Notes

Table model using British Ediswan transistors. Price UK £14.6s.2d. plus tax £4.11s.10d. Radio! Radio!, Hill, 1996 lists this model as 300TR, a typing error?

Uses 2 x 996 Lantern Batteries, the same PCB based chassis later used OC44 /OC81 series (on other Brands/Models) and was used in smaller  Alba 22, Defiant A5 (later OC44 in Defiant A55) and Kit radios with a single PP11 battery. Chassis / PCB probably assembled by Plessey.

Price in first year of sale 19.00 GBP
Source of data -- Schematic
Circuit diagram reference Radio and TV Servicing books (R&TVS) book
Mentioned in Radio! Radio!, Hill, 1996

Model page created by Keith Staines. See "Data change" for further contributors.
