National UB-260

National UB-260; Panasonic, (ID = 2267206) Radio National UB-260; Panasonic, (ID = 2267209) Radio
National UB-260; Panasonic, (ID = 2267208) Radio National UB-260; Panasonic, (ID = 2267207) Radio
National UB-260; Panasonic, (ID = 2267210) Radio National UB-260; Panasonic, (ID = 2267211) Radio
National UB-260; Panasonic, (ID = 2267212) Radio National UB-260; Panasonic, (ID = 2267213) Radio
National UB-260; Panasonic, (ID = 2267214) Radio National UB-260; Panasonic, (ID = 2267215) Radio
Use red slider bar for more.

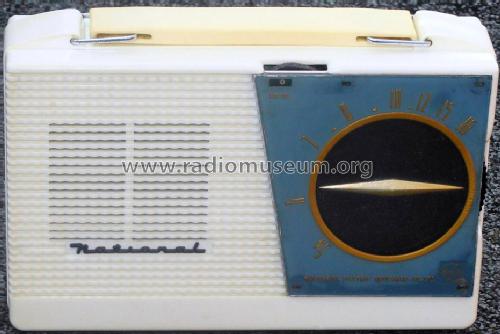

National UB-260; Panasonic, (ID = 2267206) Radio
Panasonic,: National UB-260 [Radio] ID = 2267206 1024x651
Select picture or schematic to display from thumbnails on the right and click for download.
For model National UB-260, Panasonic, Matsushita, National ナショナル (also tubes); Osaka:
Thanks for Mr.Forte5_a, Hungary, Budapest and Első Zalai Rádiómúzeum Alapítvány, First Zala County Radio Museum Foundation.

Country:  Japan
Manufacturer / Brand:  Panasonic, Matsushita, National ナショナル (also tubes); Osaka
Year: 1957 ? Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 4: DK96 DF96 DAF96 DL97 or 3Y4
Main principle Superheterodyne (common); ZF/IF 455 kHz; 2 AF stage(s)
Tuned circuits 6 AM circuit(s)
Wave bands Broadcast only (MW).
Details
Power type and voltage Dry Batteries / 1.5 & 67.5 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
Power out
from Radiomuseum.org Model: National UB-260 - Panasonic, Matsushita,
Material Bakelite or Plastics (type unknown)
Shape Portable set > 8 inch (also usable without mains)
Dimensions (WHD) 210 x 140 x 60 mm / 8.3 x 5.5 x 2.4 inch
Notes

UB-260 is a battery operated portable radio receiver.
Frequency range: 540 - 1600 kHz.

Model page created by Bernhard Nagel. See "Data change" for further contributors.
