• Year
  • 1959
  • Category
  • Audio Amplifier or -mixer
  • Radiomuseum.org ID
  • 152610

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Tubes
  • 5
  • Main principle
  • Audio-Amplification
  • Wave bands
  • - without
  • Details
  • Rec.Player+Audio.Amp+LS
  • Power type and voltage
  • Alternating Current supply (AC) / 110 - 120 Volt
  • Loudspeaker
  • 4 Loudspeakers
  • Power out
  • 5 W (unknown quality)
  • Material
  • Wooden case
  • from Radiomuseum.org
  • Model: SK12M Ch= HS-719 + HS-706 - Motorola Inc. ex Galvin Mfg.Co
  • Shape
  • Console, Lowboy (legs < 50 %).
  • Notes
  • The Motorola Model SK12M is an AC operated 5 Tube stereo Phono Amplifier with 4 Speed Automatic Record Changer. Uses pre-amp chassis HS-719 and power amp chassis HS-706. Cabinet is Mahogany. This model has Qty(2) 10" PM speakers and Qty(2) 5" PM speakers. Uses Record Changer VM22RC. Two cabinets make up this model, with the second cabinet holding the right channel speakers (S12M).

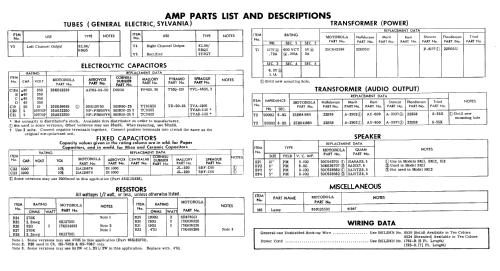

  • Literature/Schematics (2)
  • - - Manufacturers Literature
  • Author
  • Model page created by Egon Penker. See "Data change" for further contributors.
