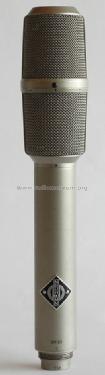

Stereo-Kondensatormikrofon SM69
Use red slider bar for more.
Neumann, Georg,: Stereo-Kondensatormikrofon SM69 [Microphone/PU] ID = 968618 263x933
Select picture or schematic to display from thumbnails on the right and click for download.
|
|
||||
| Year: 1964–1973 | Category: Microphone or Pick-up element | ||||
| Valves / Tubes | 2: AC701k AC701k |
|---|
| Main principle | Audio-Amplification; none |
|---|---|
| Wave bands | - without |
| Details | |
| Power type and voltage | Powered by external power supply or a main unit. / 4 & 120 Volt |
| Loudspeaker | - For headphones or amp. |
| Power out | |
| from Radiomuseum.org | Model: Stereo-Kondensatormikrofon SM69 - Neumann, Georg, Laboratorium f |
| Material | Metal case |
| Shape | Miscellaneous shapes - described under notes. |
| Dimensions (WHD) | 48 x 256 x 48 mm / 1.9 x 10.1 x 1.9 inch |

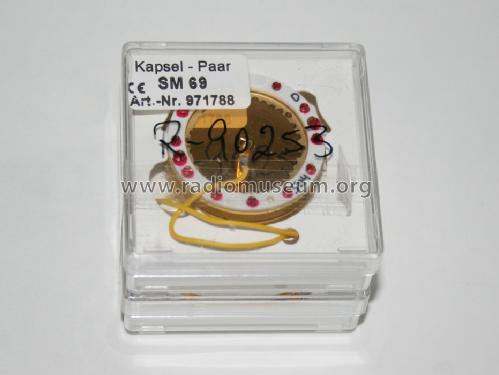

| Notes | Stereo-Kondensatormikrophon für koinzidente Aufnahmeverfahren wie MS und XY. Beide Kapseln in der Richtcharakteristik umschaltbar von Kugel bis Acht in 9 Stufen. Speisung auf Netzgerät NSMa 23. |
| Net weight (2.2 lb = 1 kg) | 0.5 kg / 1 lb 1.6 oz (1.101 lb) |
| Mentioned in | -- Schematic |
| Literature/Schematics (1) | - - Manufacturers Literature |
Model page created by Nikolaus Löwe. See "Data change" for further contributors.
