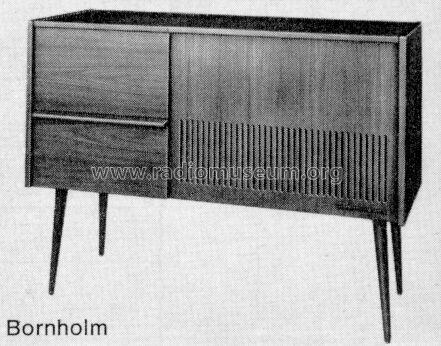

Bornholm-Stereo Ch=4/675 Rüster/Teak

Bornholm-Stereo Ch=4/675; Nordmende, (ID = 39868) Radio
Bornholm-Stereo Ch=4/675; Nordmende, (ID = 676773) Radio Bornholm-Stereo Ch=4/675; Nordmende, (ID = 40629) Radio
Use red slider bar for more.
Bornholm-Stereo Ch=4/675; Nordmende, (ID = 676773) Radio
Nordmende,: Bornholm-Stereo Ch=4/675 [Radio] ID = 676773 806x572
Select picture or schematic to display from thumbnails on the right and click for download.
For model Bornholm-Stereo Ch=4/675 Rüster/Teak, Nordmende, Norddeutsche Mende-Rundfunk GmbH (Sterling), Bremen-Hemelingen:
aus Konzertschränke-Programm 1963
Country:  Germany
Manufacturer / Brand:  Nordmende, Norddeutsche Mende-Rundfunk GmbH (Sterling), Bremen-Hemelingen
Year: 1963/1964 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 6: ECC85 ECH81 EAF801 ECC83 EM84 ELL80
Main principle Superheterodyne (common); ZF/IF 460/10700 kHz
Tuned circuits 6 AM circuit(s)     10 FM circuit(s)
Wave bands Broadcast, Long Wave, Short Wave plus FM or UHF.
Details Changer (Record changer)
Power type and voltage Alternating Current supply (AC) / 110/220 Volt
Loudspeaker 2 Loudspeakers
Power out
from Model: Bornholm-Stereo Ch=4/675 [Rüster/Teak] - Nordmende, Norddeutsche Mende-
Material Wooden case
Shape Console with Push Buttons.
Dimensions (WHD) 1015 x 735 x 390 mm / 40 x 28.9 x 15.4 inch
Notes Stereo-NF-Verstärker mit 2 Endstufen je 3 W; FM-Stereo-Decoder nachrüstbar.
Phono-Chassis = Elac Miracord 16.
Net weight (2.2 lb = 1 kg) 32 kg / 70 lb 7.8 oz (70.485 lb)
Price in first year of sale 741.00 DM
External source of data Erb
Source of data Handbuch VDRG 1963/1964
