Arabella Ch= 400-10

Arabella Ch= 400-10; Nordmende, (ID = 884999) Radio

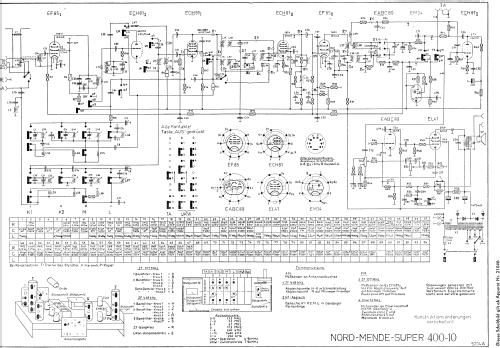

Arabella Ch= 400-10; Nordmende, (ID = 885000) Radio
Arabella Ch= 400-10; Nordmende, (ID = 2364093) Radio Arabella Ch= 400-10; Nordmende, (ID = 2364096) Radio

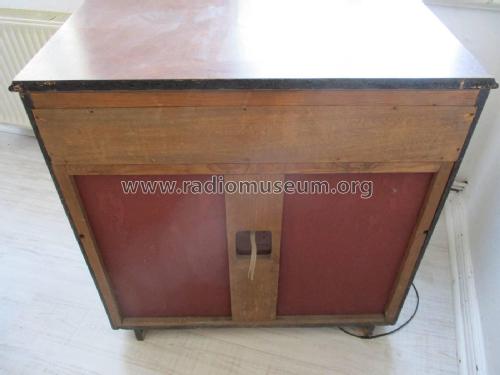

Arabella Ch= 400-10; Nordmende, (ID = 2364094) Radio Arabella Ch= 400-10; Nordmende, (ID = 2364095) Radio
Arabella Ch= 400-10; Nordmende, (ID = 229543) Radio Arabella Ch= 400-10; Nordmende, (ID = 229544) Radio
Use red slider bar for more.
Arabella Ch= 400-10; Nordmende, (ID = 2364093) Radio
Nordmende,: Arabella Ch= 400-10 [Radio] ID = 2364093 1400x1345
Select picture or schematic to display from thumbnails on the right and click for download.
For model Arabella Ch= 400-10, Nordmende, Norddeutsche Mende-Rundfunk GmbH (Sterling), Bremen-Hemelingen

Country:  Germany
Manufacturer / Brand:  Nordmende, Norddeutsche Mende-Rundfunk GmbH (Sterling), Bremen-Hemelingen
Year: 1952/1953 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 7: EF85 ECH81 ECH81 EF85 EM34 EABC80 EL41
Semiconductors (the count is only for transistors) Tr.Gl.=Metal-rectif.
Main principle Superheterodyne (common); ZF/IF 473/10700 kHz
Tuned circuits 9 AM circuit(s)     10 FM circuit(s)
Wave bands Broadcast, (BC) Long Wave (LW), 2 x SW and FM or UHF.
Details Changer (Record changer)
Power type and voltage Alternating Current supply (AC) / 110/240 Volt
Loudspeaker 2 Loudspeakers
Power out
from Radiomuseum.org Model: Arabella Ch= 400-10 - Nordmende, Norddeutsche Mende-
Material Wooden case
Shape Console with Push Buttons.
Dimensions (WHD) 830 x 800 x 440 mm / 32.7 x 31.5 x 17.3 inch
Notes

Radiochassis vom 400-10

Price in first year of sale 975.00 DM
External source of data Erb
Source of data Kat.d.Rundf.GrossH.1952/53
Literature/Schematics (1) -- Original-techn. papers.
