Skandia S24 Ch= 6/615

Skandia S24 Ch= 6/615; Nordmende, (ID = 62583) Radio

Skandia S24 Ch= 6/615; Nordmende, (ID = 135129) Radio

Skandia S24 Ch= 6/615; Nordmende, (ID = 62585) Radio

Skandia S24 Ch= 6/615; Nordmende, (ID = 62586) Radio

Skandia S24 Ch= 6/615; Nordmende, (ID = 62587) Radio

Skandia S24 Ch= 6/615; Nordmende, (ID = 62588) Radio
Skandia S24 Ch= 6/615; Nordmende, (ID = 476443) Radio Skandia S24 Ch= 6/615; Nordmende, (ID = 476444) Radio
Skandia S24 Ch= 6/615; Nordmende, (ID = 476445) Radio Skandia S24 Ch= 6/615; Nordmende, (ID = 1711089) Radio
Skandia S24 Ch= 6/615; Nordmende, (ID = 1711090) Radio Skandia S24 Ch= 6/615; Nordmende, (ID = 1711091) Radio
Skandia S24 Ch= 6/615; Nordmende, (ID = 955380) Radio Skandia S24 Ch= 6/615; Nordmende, (ID = 68000) Radio
Skandia S24 Ch= 6/615; Nordmende, (ID = 714746) Radio Skandia S24 Ch= 6/615; Nordmende, (ID = 714747) Radio
Use red slider bar for more.

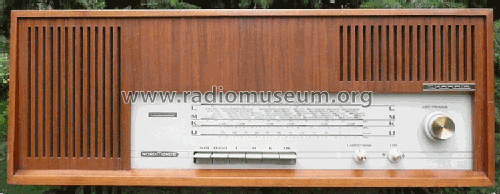

Skandia S24 Ch= 6/615; Nordmende, (ID = 476443) Radio
Nordmende,: Skandia S24 Ch= 6/615 [Radio] ID = 476443 750x292
Select picture or schematic to display from thumbnails on the right and click for download.

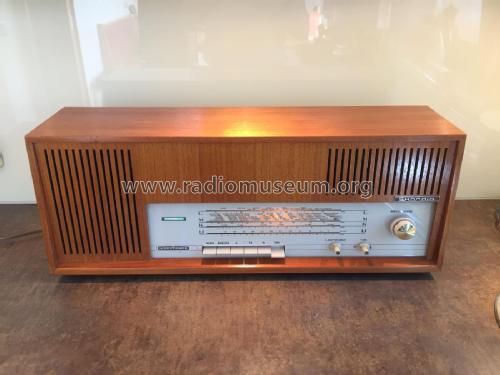

For model Skandia S24 Ch= 6/615, Nordmende, Norddeutsche Mende-Rundfunk GmbH (Sterling), Bremen-Hemelingen

Country:  Germany
Manufacturer / Brand:  Nordmende, Norddeutsche Mende-Rundfunk GmbH (Sterling), Bremen-Hemelingen
Year: 1965/1966 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 5: ECC85 ECH81 EBF89 ECL86 EM84
Semiconductors (the count is only for transistors) OA79 OA79
Main principle Super-Heterodyne (Super in general); ZF/IF 460/10700 kHz
Tuned circuits 6 AM circuit(s)     10 FM circuit(s)
Wave bands Broadcast, Long Wave, Short Wave plus FM or UHF.
Details
Power type and voltage Alternating Current supply (AC) / 110; 220 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical
Power out 3.5 W (unknown quality)
from Radiomuseum.org Model: Skandia S24 Ch= 6/615 - Nordmende, Norddeutsche Mende-
Material Wooden case

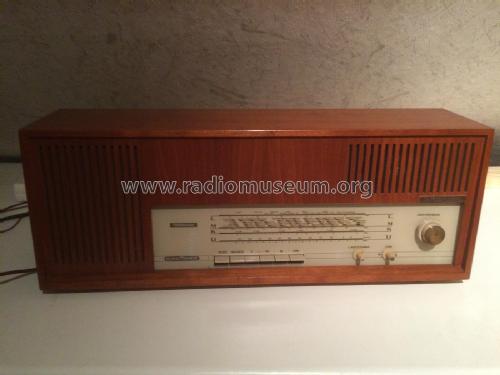

Shape Tablemodel with Push Buttons.
Dimensions (WHD) 626 x 239 x 171 mm / 24.6 x 9.4 x 6.7 inch
Notes

Ratio-Detektor mit 2 Germanium-Dioden.

Net weight (2.2 lb = 1 kg) 5.8 kg / 12 lb 12.4 oz (12.775 lb)
Collectors' prices
External source of data erb
Source of data Handbuch VDRG 1965/1966

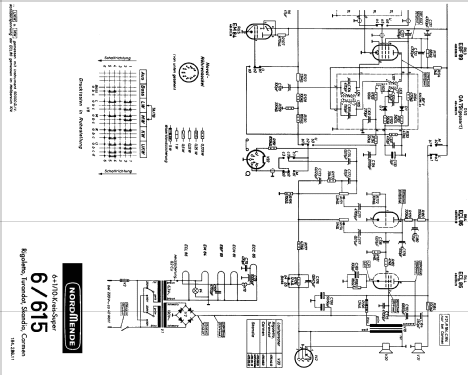

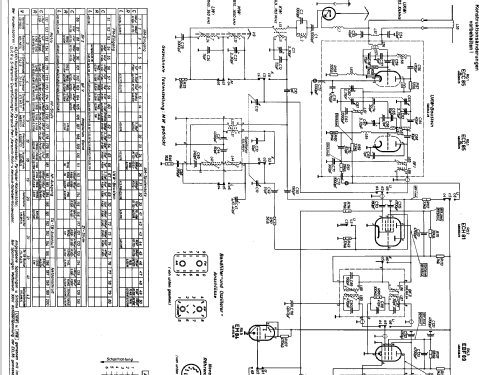

Literature/Schematics (1) -- Original-techn. papers.
