Stereo-Steuergerät 3007 I370 Ch= 7/675

• Country
• Germany

• Manufacturer / Brand
• Nordmende, Norddeutsche Mende-Rundfunk GmbH (Sterling), Bremen-Hemelingen

• Year
• 1966–1968

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 26723

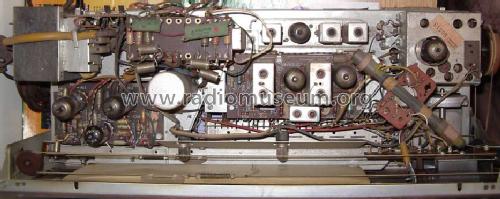

• Picture
• Schematics

Previous Next

Previous Next

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 8

• Valves / Tubes
• ECC85 ECH81 EAF801 ECC808 EMM803 ECC81 ECLL800 ECLL800

• Main principle
• Superheterodyne (common); ZF/IF 460/10700 kHz

• Tuned circuits
• 6 AM circuit(s)     10 FM circuit(s)

• Wave bands
• Broadcast, Long Wave, Short Wave plus FM or UHF.

• Power type and voltage
• Alternating Current supply (AC) / 110; 220 Volt

• Loudspeaker
• - This model requires external speaker(s).

• Material
• Wooden case

• from Radiomuseum.org
• Model: Stereo-Steuergerät 3007 I370 Ch= 7/675 - Nordmende, Norddeutsche Mende-

• Shape
• Book-shelf unit.

• Dimensions (WHD)
• 550 x 210 x 230 mm / 21.7 x 8.3 x 9.1 inch

• Notes

• Vollstereo, NF-Verstärker mit zwei Endstufen je 7 W.

  Hierzu passt die Nordmende Lautsprecherbox LB20.

• Net weight (2.2 lb = 1 kg)
• 9.2 kg / 20 lb 4.2 oz (20.264 lb)

• External source of data
• erb

• Source of data
• Handbuch VDRG 1966/1967
