For model Super 310GW, Nordmende, Norddeutsche Mende-Rundfunk GmbH (Sterling), Bremen-Hemelingen

Country:  Germany
Manufacturer / Brand:  Nordmende, Norddeutsche Mende-Rundfunk GmbH (Sterling), Bremen-Hemelingen
Year: 1949/1950 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 6: UCH42 UAF42 UAF42 UL41 UM4 UY41 U2410PL
Main principle Superheterodyne (common); ZF/IF 473 kHz
Tuned circuits 6 AM circuit(s)
Wave bands Ready for FM, has Broadcast, Long Wave, Short wave.
Details
Power type and voltage AC/DC-set / 110-220 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
Power out
from Radiomuseum.org Model: Super 310GW - Nordmende, Norddeutsche Mende-

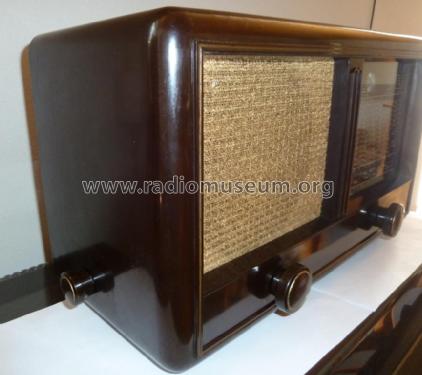

Material Bakelite case
Shape Tablemodel, low profile (big size).
Dimensions (WHD) 440 x 254 x 186 mm / 17.3 x 10 x 7.3 inch
Notes Chassis = 370GW
KW-Lupe
Price in first year of sale 310.00 DM
Source of data Radiokatalog Band 1, Ernst Erb

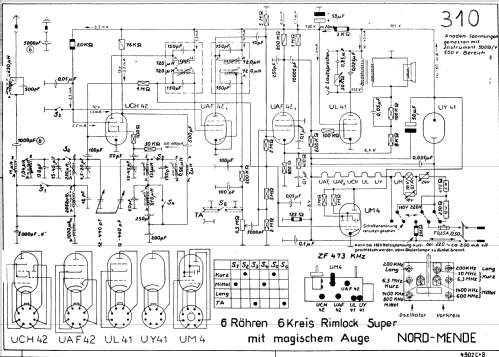

Circuit diagram reference Lange-Nowisch
Mentioned in Funkschau (5008)
