KY147, U, TY134, U Ch= HY, HYU

• Country
• United States of America (USA)

• Manufacturer / Brand
• Olympic Radio & Television, Inc.; New York (NY)

• Year
• 1959

• Category
• Television Receiver (TV) or Monitor

• Radiomuseum.org ID
• 156330

• Picture

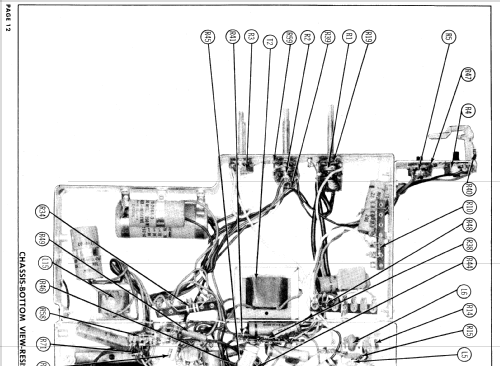

• Schematics

Previous Next

Previous Next

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 14

• Valves / Tubes

• Main principle
• Superheterodyne (common)

• Wave bands
• Wave Bands given in the notes.

• Power type and voltage
• Alternating Current supply (AC) / 110 - 120 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 4 inch = 10.2 cm

• Material
• Wooden case

• from Radiomuseum.org
• Model: KY147, U, TY134, U Ch= HY, HYU - Olympic Radio & Television,

• Shape
• Tablemodel, with any shape - general.

• Notes
• 21" b/w Television Receiver, Picture tube: 21CBP4, Sufffix "U" stands for factory equipped with continuous UHF tuner, tube quantity UHF: 15
  Tuning Range: TV - Channels 2 thru 13 VHF, 14 thru 84 UHF.
