70 Watt Verstärker EL6425 /00 /06
Philips; Eindhoven (tubes international!); Miniwatt
- Country
- Netherlands
- Manufacturer / Brand
- Philips; Eindhoven (tubes international!); Miniwatt
- Year
- 1959–1961
- Category
- Audio Amplifier or -mixer
- Radiomuseum.org ID
- 81416
Top

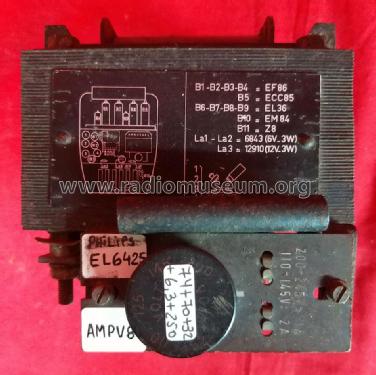

Label
Inside
Q: Philips, Produkt-Katalog
Homebrew cabinet containing EL6425 amplifier
Homebrew cabinet containing EL6425 amplifier
Homebrew cabinet containing EL6425 amplifier
Homebrew cabinet containing EL6425 amplifier
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 10
- Main principle
- Audio-Amplification; 5 AF stage(s)
- Wave bands
- - without
- Power type and voltage
- Alternating Current supply (AC) / 110; 125; 145; 200; 220; 245 Volt
- Loudspeaker
- - This model requires external speaker(s).
- Power out
- 70 W (undistorted)
- Material
- Metal case
- from Radiomuseum.org
- Model: 70 Watt Verstärker EL6425 /00 /06 - Philips; Eindhoven tubes
- Shape
- Tablemodel, with any shape - general.
- Dimensions (WHD)
- 300 x 160 x 410 mm / 11.8 x 6.3 x 16.1 inch
- Notes
-
Mischpultverstärker mit 4 Eingängen.
Übersteuerungsschutz mittels LDR.
- Net weight (2.2 lb = 1 kg)
- 12.5 kg / 27 lb 8.5 oz (27.533 lb)
- Price in first year of sale
- 1,320.00 DM
- Source of data
- - - Manufacturers Literature
- Mentioned in
- -- Original-techn. papers. (Philips Sammel- Preisliste 1963/64)
- Literature/Schematics (1)
- Funk-Technik (FT) (23/1959, S. 824 - 827 / Ausführlicher Bericht, Schema)
- Author
- Model page created by Bernd Pötzsch. See "Data change" for further contributors.
