• Country
• Germany

• Manufacturer / Brand
• QUELLE GmbH (Universum); Fürth und Nürnberg

• Year
• 1993

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 148655

• Main principle
• Superheterodyne (common)

• Wave bands
• Broadcast, Long Wave, more than 2 x SW plus FM or UHF.

• Power type and voltage
• Line / Batteries (any type) / 220 / 4x1,5 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical / Ø 63.5 cm = 25 inch

• Power out
• 0.2 W (unknown quality)

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org

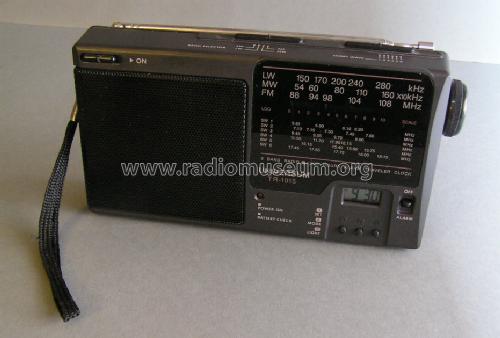

• Model: 9 Band Transistor Radio TR 1015 - QUELLE GmbH Universum; Fürth

• Shape
• Very small Portable or Pocket-Set (Handheld) < 8 inch.

• Dimensions (WHD)
• 180 x 100 x 40 mm / 7.1 x 3.9 x 1.6 inch

• Notes
• IC CXA1191S LW/MW/FM 6 x KW KW1: 49m/KW2: 41m/KW3: 31m/KW4: 25m/KW5: 19m/KW6: 16m

• Net weight (2.2 lb = 1 kg)
• 0.4 kg / 0 lb 14.1 oz (0.881 lb)

• Price in first year of sale
• 69.00 DM

• Source of data
• - - Data from my own collection

• Author
• Model page created by Gerhard Weiss. See "Data change" for further contributors.

• Other Models

• Here you find 1078 models, 902 with images and 506 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
  All listed radios etc. from QUELLE GmbH (Universum); Fürth und Nürnberg
