Radiolo RA125U

Radiolo RA125U; Radiola marque (ID = 479650) Radio
Radiolo RA125U; Radiola marque (ID = 415730) Radio Radiolo RA125U; Radiola marque (ID = 267831) Radio
Radiolo RA125U; Radiola marque (ID = 267832) Radio Radiolo RA125U; Radiola marque (ID = 238211) Radio
Radiolo RA125U; Radiola marque (ID = 267833) Radio Radiolo RA125U; Radiola marque (ID = 320710) Radio
Radiolo RA125U; Radiola marque (ID = 415731) Radio Radiolo RA125U; Radiola marque (ID = 418757) Radio
Radiolo RA125U; Radiola marque (ID = 423571) Radio Radiolo RA125U; Radiola marque (ID = 423572) Radio
Use red slider bar for more.
Radiolo RA125U; Radiola marque (ID = 415730) Radio
Radiola marque: Radiolo RA125U [Radio] ID = 415730 933x656
Select picture or schematic to display from thumbnails on the right and click for download.
For model Radiolo RA125U, Radiola (marque)

Country:  France
Manufacturer / Brand:  Radiola (marque)
Brand

SFER
Year: 1954 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 4: UCH81 UAF42 UL41 UY42
Main principle Superheterodyne (common); ZF/IF 455 kHz
Tuned circuits 6 AM circuit(s)
Wave bands Broadcast (MW) and Long Wave.
Details
Power type and voltage AC/DC-set / 110-127 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 10 cm = 3.9 inch
Power out
from Radiomuseum.org Model: Radiolo RA125U - Radiola marque
Material Plastics (no bakelite or catalin)
Shape Tablemodel without push buttons, Mantel/Midget/Compact up to 14
Dimensions (WHD) 240 x 150 x 110 mm / 9.4 x 5.9 x 4.3 inch

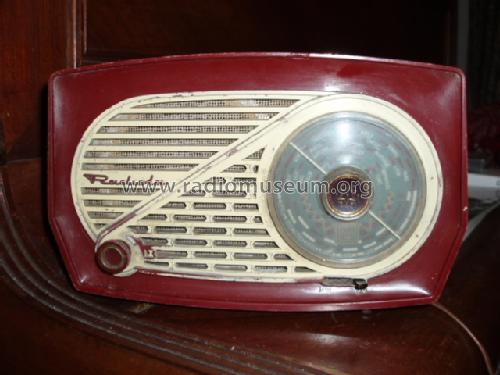

Notes Chassis like Philips BF102U. Colours: bordeaux; luxory model: green or ivory.
Net weight (2.2 lb = 1 kg) 1.9 kg / 4 lb 3 oz (4.185 lb)
Source of data -- Schematic

Model page created by John Koster. See "Data change" for further contributors.



All listed radios etc. from Radiola (marque)
Here you find 826 models, 520 with images and 264 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
