• Country
• Spain

• Manufacturer / Brand
• Radiomanufacturas RHA Ltda; Barcelona

• Year
• 1945 ??

• Category
• Kit (Parts plus instruction) or building instructions only

• Radiomuseum.org ID
• 224339

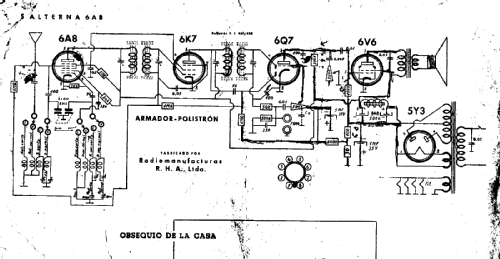

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 5

• Valves / Tubes
• 6A8 6K7 6Q7 6V6 5Y3

• Main principle
• Superheterodyne (common)

• Wave bands
• Broadcast and Short Wave (SW).

• Power type and voltage
• Alternating Current supply (AC)

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

• from Radiomuseum.org
• Model: Armador-Polistron - Radiomanufacturas RHA Ltda;

• Shape
• Tablemodel, with any shape - general.

• Source of data
• -- Original prospect or advert

• Author
• Model page created by Rafael Monjo-Dalmau. See "Data change" for further contributors.

• Other Models

• Here you find 9 models, 4 with images and 4 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
  All listed radios etc. from Radiomanufacturas RHA Ltda; Barcelona
