21T9265, 21T9266, 21T9267 Ch= KCS124C
RCA (RCA Victor Co. Inc.); New York (NY)
- Country
- United States of America (USA)
- Manufacturer / Brand
- RCA (RCA Victor Co. Inc.); New York (NY)
- Year
- 1959
- Category
- Television Receiver (TV) or Monitor
- Radiomuseum.org ID
- 156041
-
- alternative name: RCA Manufacturing || Victor Talking Machine
Sams Photofact Folders
Sams Photofact Folders

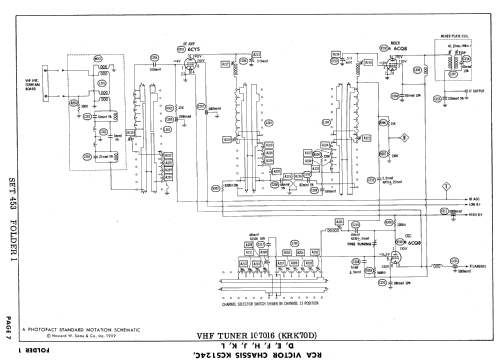

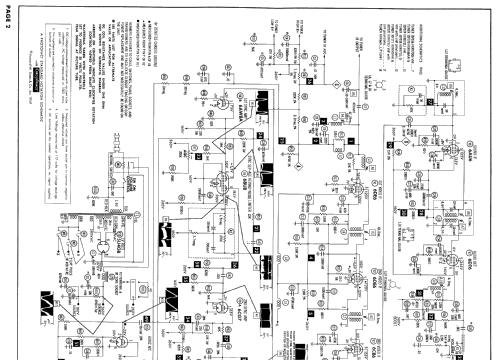

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 18
- Valves / Tubes
- Main principle
- Superheterodyne (common)
- Wave bands
- Wave Bands given in the notes.
- Power type and voltage
- Alternating Current supply (AC) / 110 - 120 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
- Material
- Wooden case
- from Radiomuseum.org
- Model: 21T9265, 21T9266, 21T9267 Ch= KCS124C - RCA RCA Victor Co. Inc.; New
- Shape
- Console, Lowboy (legs < 50 %).
- Notes
- 21" b/w Television Receiver, Picture tube: 21CEP4, Sufffix "U" stands for factory equipped with continuous UHF tuner, tube quantity UHF: 19
Tuning Range: TV - Channels 2 thru 13 VHF, 14 thru 84 UHF.
- Literature/Schematics (1)

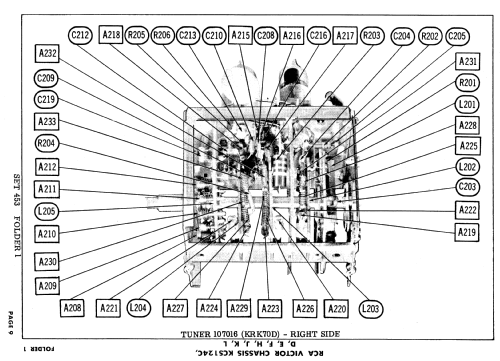

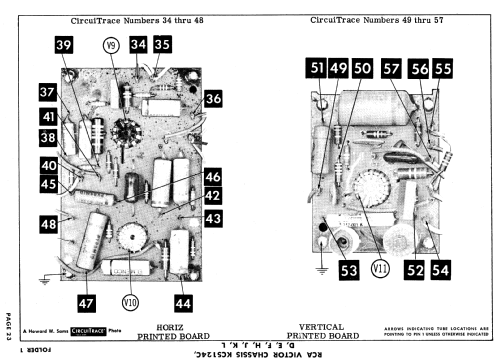

- Photofact Folder, Howard W. SAMS (Date 8-59, Set 453, Folder 1)
- Author
- Model page created by Egon Penker. See "Data change" for further contributors.
