• Country
• Italy

• Manufacturer / Brand
• RCA Italiana; Roma

• Year
• 1963 ??

• Category
• Sound/Video Recorder and/or Player

• Radiomuseum.org ID
• 200835

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 3

• Valves / Tubes
• UCL82 UCL82 UY85

• Main principle
• Audio-Amplification; none

• Wave bands
• - without

• Details
• Rec.Player+Audio.Amp+LS

• Power type and voltage
• Alternating Current supply (AC) / 100-240 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

• Power out
• 5 W (unknown quality)

• Material
• Leather / canvas / plastic - over other material

• from Radiomuseum.org
• Model: Fonografo Stereofonico 5134 - RCA Italiana; Roma

• Shape
• Book-shelf unit.

• Dimensions (WHD)
• 460 x 180 x 315 mm / 18.1 x 7.1 x 12.4 inch

• Notes

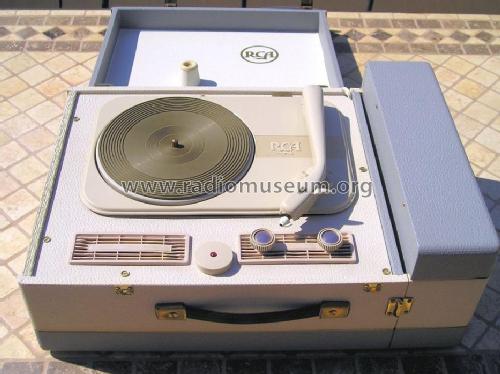

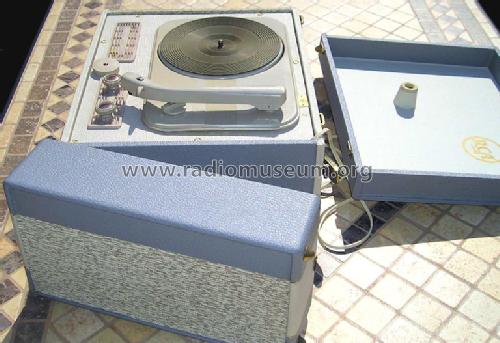

• Fonografo valvolare stereofonico a valigetta dalla linea classica prodotto dalla R.C.A. Italiana (Roma) per il Reader's Digest negli anni '60. Mobile in legno rivestito da materiale plastico similpelle. Dotato di un altoparlante interno fisso e di un altoparlante esterno in cassa staccabile. Piatto giradischi RCA a 4 velocità.

• Net weight (2.2 lb = 1 kg)
• 6.9 kg / 15 lb 3.2 oz (15.198 lb)

• Author
• Model page created by Giuseppe Camarca. See "Data change" for further contributors.
