Freiburg W (UKW-Teil nachgerüstet)

Freiburg W ; SABA; Villingen (ID = 1785460) Radio

Freiburg W ; SABA; Villingen (ID = 1785462) Radio
Freiburg W ; SABA; Villingen (ID = 383116) Radio Freiburg W ; SABA; Villingen (ID = 383115) Radio
Freiburg W ; SABA; Villingen (ID = 271641) Radio Freiburg W ; SABA; Villingen (ID = 35176) Radio
Freiburg W ; SABA; Villingen (ID = 35178) Radio Freiburg W ; SABA; Villingen (ID = 271639) Radio
Freiburg W ; SABA; Villingen (ID = 271643) Radio Freiburg W ; SABA; Villingen (ID = 271648) Radio
Freiburg W ; SABA; Villingen (ID = 383114) Radio Freiburg W ; SABA; Villingen (ID = 1316001) Radio
Use red slider bar for more.
Freiburg W ; SABA; Villingen (ID = 383116) Radio
SABA; Villingen: Freiburg W [Radio] ID = 383116 800x548
Select picture or schematic to display from thumbnails on the right and click for download.
For model Freiburg W (UKW-Teil nachgerüstet), SABA; Villingen

Country:  Germany
Manufacturer / Brand:  SABA; Villingen
Brand

Schwer & Söhne, GmbH
Year: 1950/1951 perfect model Category: Broadcast Receiver - or past WW2 Tuner

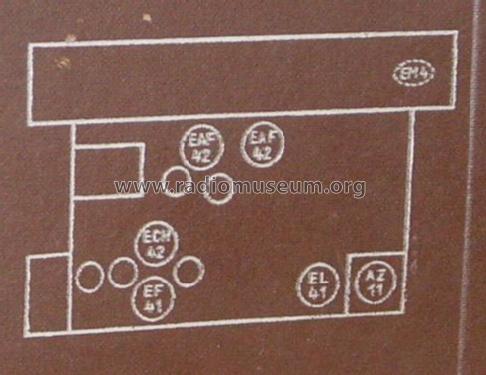

Valves / Tubes 7: EF41 ECH42 EAF42 EAF42 EM4 EL41 AZ11
Main principle Superhet with RF-stage; ZF/IF 472 kHz
Tuned circuits 9 AM circuit(s)
Wave bands Ready for FM, has Broadcast, Long Wave, several Short Wave.
Details
Power type and voltage Alternating Current supply (AC) / 110-240 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 27 cm = 10.6 inch
Power out
from Radiomuseum.org Model: Freiburg W - SABA; Villingen
Material Wooden case
Shape Tablemodel, low profile (big size).
Dimensions (WHD) 586 x 422 x 258 mm / 23.1 x 16.6 x 10.2 inch
Notes Kann mit unterschiedlichen UKW-Teilen nachträglich ausgebaut sein. Nicht serienmäßig eingebaut (das wäre Freiburg WUS).
Net weight (2.2 lb = 1 kg) 16.4 kg / 36 lb 2 oz (36.123 lb)
Collectors' prices
Source of data Kat.d. Rundf.Gr.Handel 1950/51

Model page created by Konrad Birkner † 12.08.2014. See "Data change" for further contributors.
