Hi-Fi Stereo 3000 Ortoperspekta

Salora; Salo

  • Year
  • 1973–1976
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 121257

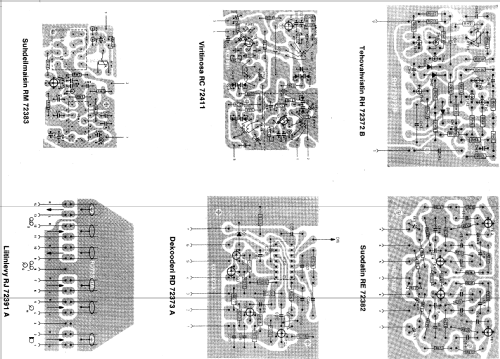

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Transistors
  • 53
  • Semiconductors
  • Main principle
  • Superheterodyne (common); ZF/IF 10700 kHz
  • Wave bands
  • FM Broadcast Band Only
  • Power type and voltage
  • Alternating Current supply (AC) / 220 Volt
  • Loudspeaker
  • - This model requires external speaker(s).
  • Power out
  • 30 W (unknown quality)
  • Material
  • Wooden case
  • from Radiomuseum.org
  • Model: Hi-Fi Stereo 3000 Ortoperspekta - Salora; Salo
  • Shape
  • Book-shelf unit.
  • Dimensions (WHD)
  • 493 x 80 x 233 mm / 19.4 x 3.1 x 9.2 inch
  • Notes
  • Output power 30 W for one front loudspeaker (=L+R) and 10 W for two back loudspeakers (L-R).

    Ortoperspekta or Orthoperspecta System (Salora Patent).

    Also available as Hi-Fi Stereo 3001 with integrated Dual 1225 record player.

  • Net weight (2.2 lb = 1 kg)
  • 5.5 kg / 12 lb 1.8 oz (12.115 lb)
  • Price in first year of sale
  • 1'000.00 FMK
  • Mentioned in
  • - - Manufacturers Literature (International user manual)
  • Author
  • Model page created by Eero Ukkola. See "Data change" for further contributors.
