• Country
• Austria

• Manufacturer / Brand
• Siemens-Austria (WSW); Wien

• Year
• 1960

• Category
• Car Radio, perhaps also + sound player/recorder

• Radiomuseum.org ID
• 10680

• • alternative name: Ges. für Technische Glaswaren
  • Brand: Wiener Schwachstrom Werke (WSW)

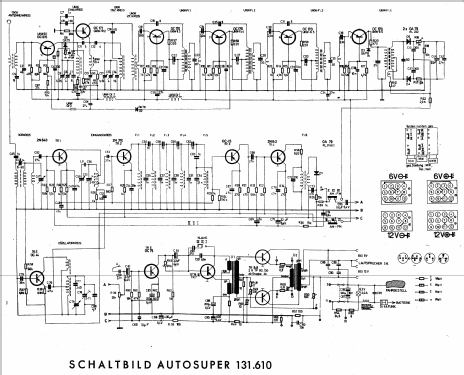

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 15

• Semiconductors
• OC615 OC171 OC170 OC170 OC170 OC170 2N640 2N374 OC45 2N641 OC44 OC75 TF78 TF80/30 TF80/30

• Main principle
• Superheterodyne (common); ZF/IF 460/10700 kHz

• Tuned circuits
• 9 AM circuit(s)     12 FM circuit(s)

• Wave bands
• Broadcast (BC) and FM or UHF.

• Power type and voltage
• Storage Battery for all (e.g. for car radios and amateur radios) / 6/12 Volt

• Loudspeaker
• - This model requires external speaker(s).

• Material
• Metal case

• from Radiomuseum.org

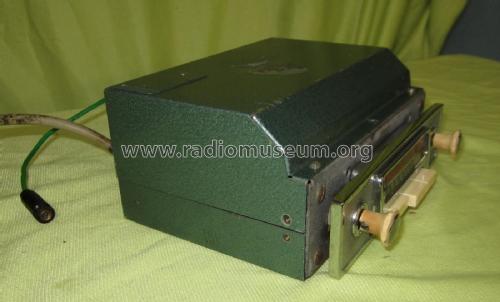

• Model: UKW-Autosuper 610 - Siemens-Austria WSW; Wien

• Shape
• Chassis only or for «building in»

• Dimensions (WHD)
• 185 x 87 x 160 mm / 7.3 x 3.4 x 6.3 inch

• Net weight (2.2 lb = 1 kg)
• 2.3 kg / 5 lb 1.1 oz (5.066 lb)

• Price in first year of sale
• 2,550.00 öS

• External source of data
• E. Erb 3-907007-36-0

• Source of data
• -- Original prospect or advert / Radiokatalog Band 2, Ernst Erb

• Literature/Schematics (1)
• -- Original-techn. papers.
