• Country
• United States of America (USA)

• Manufacturer / Brand
• Sparks-Withington Co., (Sparton); Jackson, Michigan

• Year
• 1946/1947

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 58742

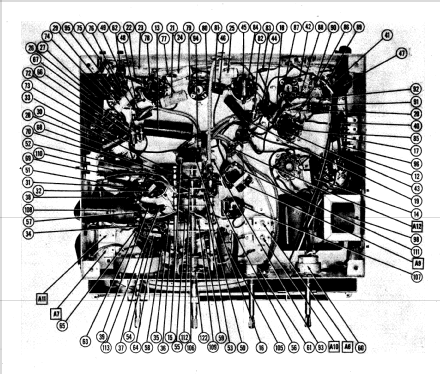

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 10

• Valves / Tubes
• 6SG7 7Q7 6SK7GT 6SK7GT 6E5 6SJ7GT 6SJ7GT 6S8GT 6V6GT 5Y3GT

• Main principle
• Superheterodyne (common); ZF/IF 456 kHz

• Wave bands
• Broadcast, Short Wave plus FM or UHF.

• Details
• Record Player (perh.Changer)

• Power type and voltage
• Alternating Current supply (AC) / 115 Volt

• Loudspeaker
• Permanent or electro-dynamic (moving coil), system not known yet.

• Material
• Wooden case

• from Radiomuseum.org
• Model: Sparton 10-BW-76-PA - Sparks-Withington Co., Sparton

• Shape
• Console with any shape - in general

• External source of data
• Ernst Erb

• Source of data
• Collector's Guide to Antique Radios (6th edition)
