Imperial 49 W (J49W)

• Country
• Germany

• Manufacturer / Brand
• Stassfurter Licht- und Kraftwerke AG; Staßfurt (Staßfurter)

• Year
• 1938/1939

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 4996

• Picture
• Schematics

Previous Next

Previous Next

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 6

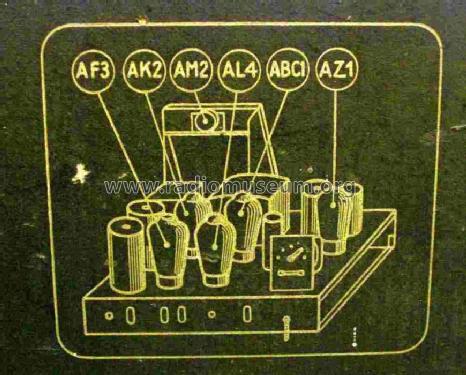

• Valves / Tubes
• AK2 AF3 ABC1 AL4 AM2 AZ1

• Main principle
• Superheterodyne (common); ZF/IF 477 kHz

• Tuned circuits
• 6 AM circuit(s)

• Wave bands
• Broadcast, Long Wave and Short Wave.

• Power type and voltage
• Alternating Current supply (AC) / 110; 125; 150; 220; 240 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

• Material
• Wooden case

• from Radiomuseum.org
• Model: Imperial 49 W - Stassfurter Licht- und

• Shape
• Tablemodel, low profile (big size).

• Dimensions (WHD)
• 606 x 363 x 300 mm / 23.9 x 14.3 x 11.8 inch

• Notes
• variable Bandbreitenregelung, Feinabstimmung

• Net weight (2.2 lb = 1 kg)
• 14 kg / 30 lb 13.4 oz (30.837 lb)

• Price in first year of sale
• 284.00 RM

• Source of data
• Handbuch WDRG 1938 / Radiokatalog Band 1, Ernst Erb

• Circuit diagram reference
• Lange+Schenk+FS-Röhrenbestückung

• Picture reference
• Das Modell ist im «Radiokatalog» (Erb) abgebildet.
